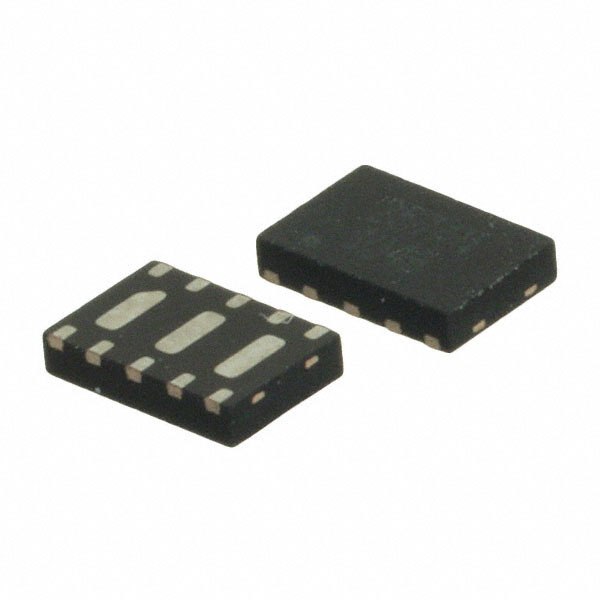

RCLAMP3374N.TCT

Active

Semtech Corporation

ESD PROTECTION DEVICE, 25 V, DFN3020, 10 PINS, 3.3 V, RAILCLAMP SERIES

Deep-Dive with AI

Search across all available documentation for this part.

RCLAMP3374N.TCT

Active

Semtech Corporation

ESD PROTECTION DEVICE, 25 V, DFN3020, 10 PINS, 3.3 V, RAILCLAMP SERIES

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RCLAMP3374N.TCT

Applications	Ethernet
Capacitance @ Frequency	3.6 pF
Current - Peak Pulse (10/1000µs)	25 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	10-UDFN Exposed Pad
Power - Peak Pulse	1000 W
Power - Peak Pulse	1 kW
Power Line Protection	True
Qualification	AEC-Q100
Supplier Device Package	SLP3020N10
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	3.5 V
Voltage - Clamping (Max) @ Ipp [Max]	18 V
Voltage - Reverse Standoff (Typ)	3.3 V

RCLAMP3374 Series

Part	Mounting Type	Voltage - Breakdown (Min) [Min]	Qualification	Supplier Device Package	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Power - Peak Pulse	Power - Peak Pulse	Voltage - Reverse Standoff (Typ)	Power Line Protection	Applications	Grade	Capacitance @ Frequency	Current - Peak Pulse (10/1000µs)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Type
Semtech Corporation RCLAMP3374N.TCT	Surface Mount	3.5 V	AEC-Q100	SLP3020N10	4	18 V	1000 W	1 kW	3.3 V		Ethernet	Automotive	3.6 pF	25 A	-40 °C	125 ¯C	10-UDFN Exposed Pad	Steering

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.94
		10	$ 1.61
		100	$ 1.28
		500	$ 1.08
		1000	$ 0.92
	Digi-Reel®	1	$ 1.94
		10	$ 1.61
		100	$ 1.28
		500	$ 1.08
		1000	$ 0.92
	Tape & Reel (TR)	3000	$ 0.87
		6000	$ 0.84
		9000	$ 0.81
Newark	Each	1	$ 2.31
		10	$ 1.68
		100	$ 1.24
		500	$ 1.01
		1000	$ 0.92
		2500	$ 0.88
		6000	$ 0.84

Description

General part information

RCLAMP3374 Series

Transient protection for high-speed data lines toIEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)IEC 61000-4-4 (EFT) 40A (5/50ns)IEC 61000-4-5 (Lightning) 40A (8/20µs)

IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)

IEC 61000-4-4 (EFT) 40A (5/50ns)
