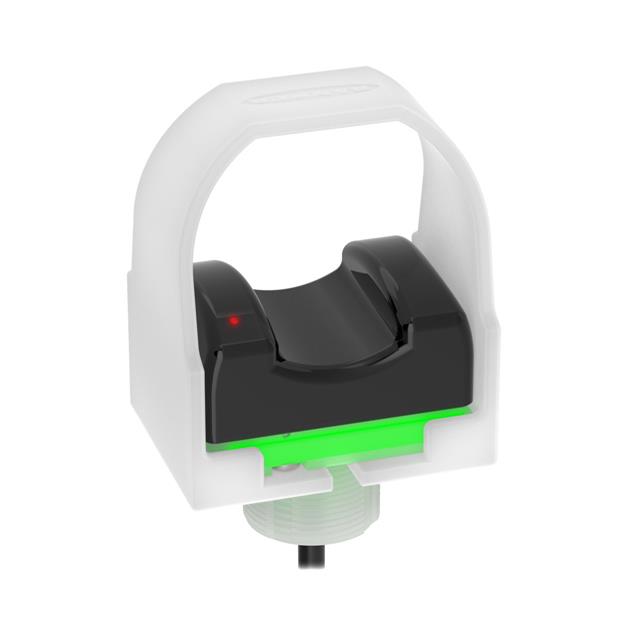

VTBP6QPMA12

Active

BANNER ENGINEERING

VTB SERIES: VERIFICATION TOUCH BUTTON 1-COLOR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

VTB SERIES: VERIFICATION TOUCH BUTTON 1-COLOR

Technical Specifications

Parameters and characteristics for this part

Part	Connection Method	Light Source	Output Configuration	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Response Time	Cable Length	Cable Length
BANNER ENGINEERING VTBP6RQ	Connector	LED	PNP	12 13 IEC IP66 3 4 4X NEMA 1	50 °C	-20 C	12 V	30 VDC	100 ms
BANNER ENGINEERING VTBP6L	Cable	LED	PNP	IEC IP66 NEMA 1 3 4 4X 12 13	50 °C	-20 C	12 V	30 VDC	100 ms	78.74 in	2 m
BANNER ENGINEERING VTBP6GRLQ	Connector		PNP	12 13 IEC IP66 3 4 4X NEMA 1	50 °C	-20 C	12 V	30 VDC	100 ms
BANNER ENGINEERING VTBP6RL	Cable	LED	PNP	12 13 IEC IP66 3 4 4X NEMA 1	50 °C	-20 C	12 V	30 VDC	100 ms	78.74 in	2 m
BANNER ENGINEERING VTBP6Q	Connector		PNP	12 13 IEC IP66 3 4 4X NEMA 1	50 °C	-20 C	12 V	30 VDC	100 ms
BANNER ENGINEERING VTBP6QPMA12	Connector	LED	PNP	12 13 IEC IP66 3 4 4X NEMA 1	50 °C	-20 C	12 V	30 VDC	100 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 194.00
Newark	Each	1	$ 198.00

General part information

Optical Sensor PNP

Technical documentation and resources
