683M17W2103L001 - 683M17W2103L001

683M17W2103L001

Active
MH Connectors

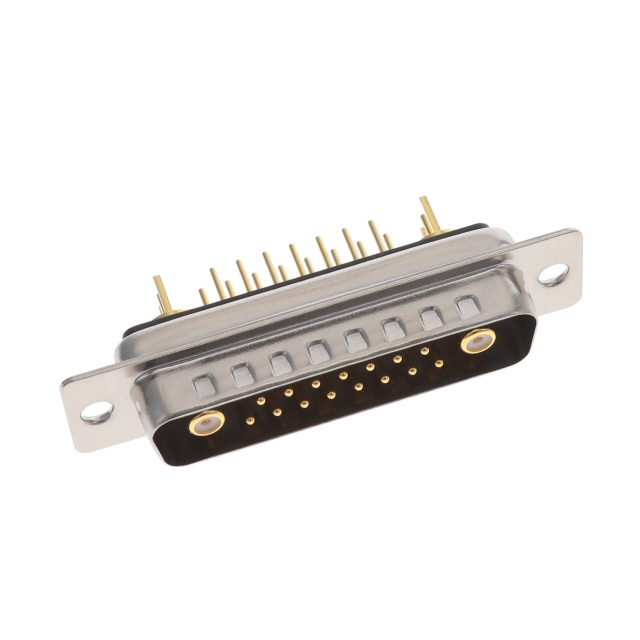

COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 683M SERIES, DB-17W2, PLUG, 17 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet3D Product Image EN+3
683M17W2103L001 - 683M17W2103L001

683M17W2103L001

Active
MH Connectors

COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 683M SERIES, DB-17W2, PLUG, 17 CONTACTS

Deep-Dive with AI

DocumentsDatasheet3D Product Image EN+3

Technical Specifications

Parameters and characteristics for this part

Specification683M17W2103L001
ColorBlack
Connector StyleD-Sub, Combo
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal, Coax
Dielectric MaterialPolybutylene Terephthalate (PBT)
FeaturesGrounding Indents
Flange FeatureHousing/Shell (Unthreaded)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Panel Mount
Number of Positions [custom]2
Number of Positions [custom]15
Number of Positions [custom]17
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout17W2, 3 (DB, B)
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 11.51
10$ 9.78
25$ 9.17
50$ 8.73
100$ 8.31
250$ 7.79
500$ 7.42
1000$ 7.07
NewarkEach 10$ 12.31
100$ 10.34
500$ 8.70
1000$ 7.66
5000$ 7.28

Description

General part information

683M17W Series

17 (15 + 2 Coax) Position D-Sub, Combo Plug, Male Pins Connector
