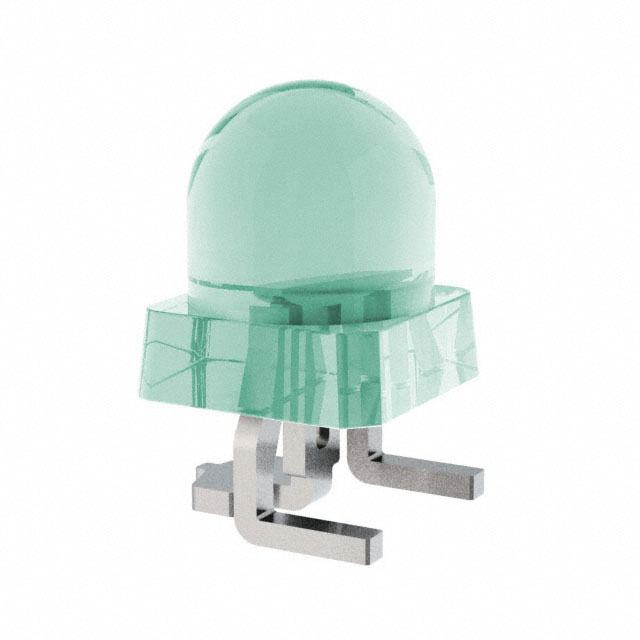

AEMD-CM3L-Z1002
ActiveBroadcom Limited
LED GREEN DIFFUSED RND SMD
Deep-Dive with AI
Search across all available documentation for this part.
AEMD-CM3L-Z1002
ActiveBroadcom Limited
LED GREEN DIFFUSED RND SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AEMD-CM3L-Z1002 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 7.3 mm |
| Lens Size [diameter] | 3.9 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, Gull Wing |
| Size / Dimension [x] | 4.2 mm |
| Size / Dimension [y] | 4.2 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 33 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
| Wavelength - Dominant | 528 nm |
| Wavelength - Peak | 512 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.33 | |
| 10 | $ 0.83 | |||
| 100 | $ 0.57 | |||
| 500 | $ 0.47 | |||
| Digi-Reel® | 1 | $ 1.33 | ||
| 10 | $ 0.83 | |||
| 100 | $ 0.57 | |||
| 500 | $ 0.47 | |||
| Tape & Reel (TR) | 1000 | $ 0.44 | ||
| 2000 | $ 0.42 | |||
| 3000 | $ 0.40 | |||
| 5000 | $ 0.39 | |||
| 7000 | $ 0.38 | |||
| 10000 | $ 0.37 | |||
| 25000 | $ 0.36 | |||
Description
General part information
AEMD-CM3L Series
Green 528nm LED Indication - Discrete 2.8V 3-SMD, Gull Wing
Documents
Technical documentation and resources
No documents available
