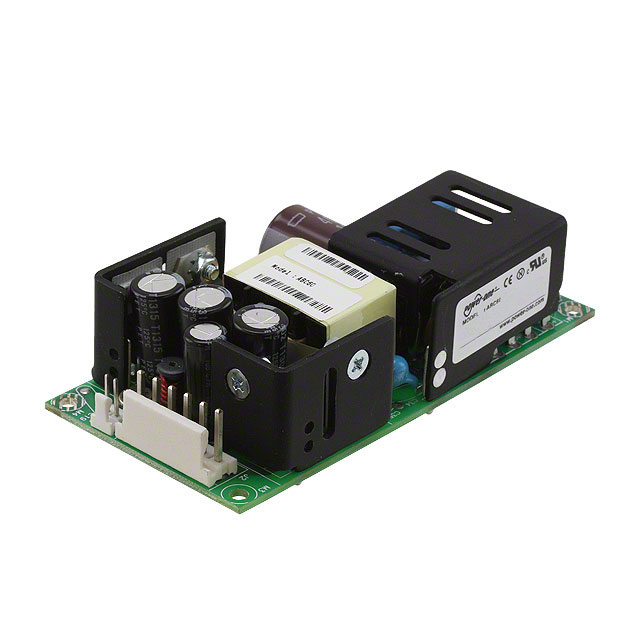

ABC60-1024G

Obsolete

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 24V 2.71A 65W

Deep-Dive with AI

Search across all available documentation for this part.

ABC60-1024G

Obsolete

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 24V 2.71A 65W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ABC60-1024G

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	2.7 A
Efficiency	85 %
Features	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	30.5 mm
Size / Dimension [z]	1.2 "
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	24 V

ABC60 Series

Part	Features	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Mounting Type	Voltage - Output 1	Number of Outputs	Efficiency	Current - Output 1	Voltage - Output 3	Current - Output 3	Voltage - Output 2	Current - Output 2
EOS Power India Private Ltd ABC60-1024G	Adjustable Output Remote Sense Universal Input	ITE (Commercial)	-20 °C	70 °C	CE	90 VAC	264 VAC	Open Frame	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	4.242 kV	Chassis Mount	24 V	1	85 %	2.7 A
EOS Power India Private Ltd ABC60-1012G	Adjustable Output Remote Sense Universal Input	ITE (Commercial)	-20 °C	70 °C	CE	90 VAC	264 VAC	Open Frame	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	4.242 kV	Chassis Mount	12 V	1	85 %
EOS Power India Private Ltd ABC60-3002G	Adjustable Output Remote Sense Universal Input	ITE (Commercial)	-20 °C	70 °C	CE	90 VAC	264 VAC	Open Frame	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	4.242 kV	Chassis Mount	5.2 V	3	85 %	8 A	-16.2 V	500 mA	14.6 V
EOS Power India Private Ltd ABC60-3003G	Adjustable Output Remote Sense Universal Input	ITE (Commercial)	-20 °C	70 °C	CE	90 VAC	264 VAC	Open Frame	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	4.242 kV	Chassis Mount	3.3 V	3	85 %	8 A	-12.8 V	500 mA	5.2 V	3 A
EOS Power India Private Ltd ABC60-1005G	Adjustable Output Remote Sense Universal Input	ITE (Commercial)	-20 °C	70 °C	CE	90 VAC	264 VAC	Open Frame	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	4.242 kV	Chassis Mount	5.2 V	1	85 %	10 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	2	$ 31.63
		5	$ 31.63
		11	$ 31.04
		22	$ 30.46
		43	$ 29.87
Digikey	Box	32	$ 33.15

Description

General part information

ABC60 Series

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
