000-28000

Active

Amphenol RF

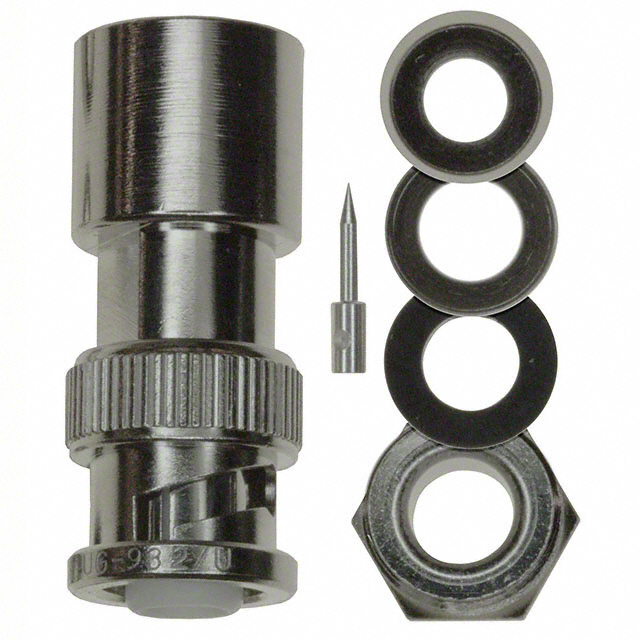

CONN MHV PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN MHV PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	000-28000

Body Finish	Nickel
Body Material	Brass
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	MHV
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Braid Clamp, 1 Washer, 1 Gasket, 1 Contact, 1 Connector, 1 Clamp
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

Part	Body Finish	Ingress Protection	Shield Termination	Mating Cycles	Body Material	Impedance	Contact Termination	Housing Color	Mounting Feature	Dielectric Material	Number of Ports	Center Contact Material	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Fastening Type	Connector Type	Mounting Type	Cable Group	Impedance	Frequency - Max [Max]	Includes
Amphenol RF 000-28400	Nickel	IP67 - Dust Tight Waterproof	Solder	500	Brass	Non-Constant	Solder Tab	Silver	Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	1	Beryllium Copper	MHV	-65 ░C	165 °C	Silver	Bayonet Lock	Female Socket Receptacle
Amphenol RF 000-28000	Nickel	Weatherproof	Clamp	500	Brass		Solder	Silver		Polytetrafluoroethylene (PTFE)	1	Brass	MHV	-65 ░C	165 °C	Silver	Bayonet Lock	Male Pin Plug	Free Hanging (In-Line)	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	50 Ohms	4 GHz	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MHV Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
