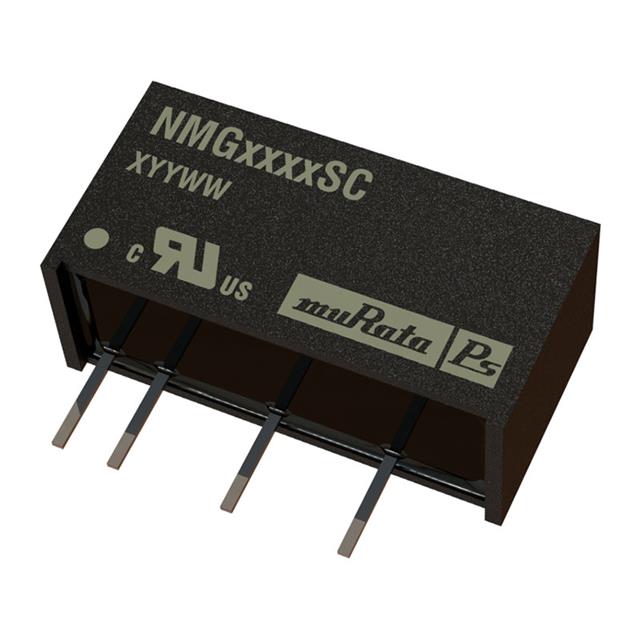

NMG1505SC
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 5V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NMG1505SC
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 5V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NMG1505SC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 400 mA |
| Efficiency | 83 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SIP Module, 4 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 19.6 mm |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [y] | 7.6 mm |
| Size / Dimension [z] | 10.2 mm |
| Size / Dimension [z] | 0.4 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 16.5 V |
| Voltage - Input (Min) [Min] | 13.5 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 7.61 | |
Description
General part information
NMG15 Series
Isolated Module DC DC Converter 1 Output 5V 400mA 13.5V - 16.5V Input
