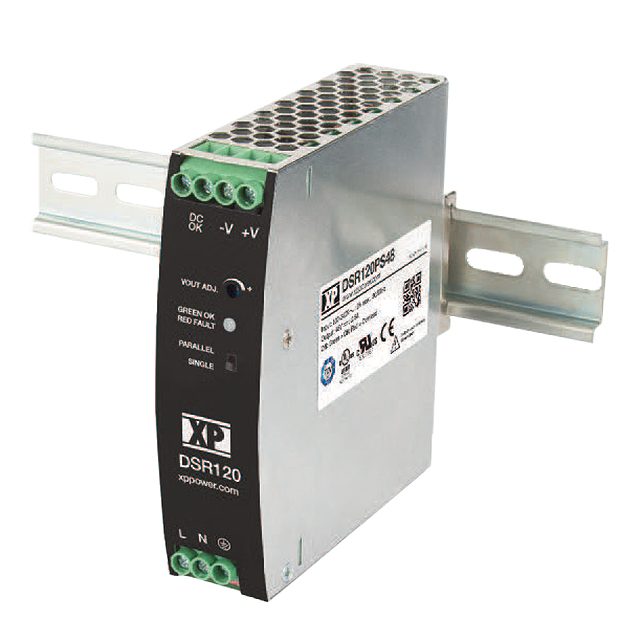

DSR120PS12

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 12V 120W

Search across all available documentation for this part.

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 12V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	DSR120PS12

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	TUV, CB, cULus, cURus, CE
Current - Output (Max) [Max]	10 A
Features	Adjustable Output, Universal Input
Input Type	AC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Size / Dimension [x]	4.47 in
Size / Dimension [x]	113.5 mm
Size / Dimension [y]	1.26 in
Size / Dimension [y]	32 mm
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Standard Number	62368-1
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Features	Applications	Voltage - Isolation	Minimum Load Required	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Input Type	Current - Output (Max) [Max]	Standard Number	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Efficiency
XP POWER DSR120PS12	Adjustable Output Universal Input	Industrial ITE (Commercial)	3000 V		4.47 in	4.88 "	124 mm	113.5 mm	1.26 in	32 mm	1	AC	10 A	62368-1	85 VAC	264 VAC	12 V	-25 °C	70 °C	CB CE cULus cURus TUV
XP POWER DSR120PS48	Adjustable Output Universal Input	Industrial ITE (Commercial)	3000 V		4.47 in	4.88 "	124 mm	113.5 mm	1.26 in	32 mm	1	AC	2.5 A	62368-1	85 VAC	264 VAC	48 V	-25 °C	70 °C	CB CE cULus cURus TUV	92 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AC/DC DIN RAIL SUPPLY 12V 120W
