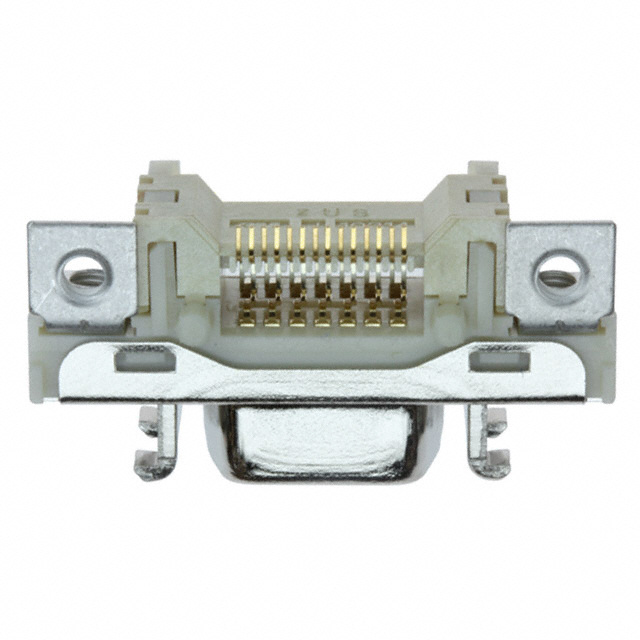

10214-1210PE

Active

3M (TC)

JE150317780 10214-1210PE=14/MDR/RC/RA/SMTRECP/M2.5/SCW/20MIN

Search across all available documentation for this part.

Active

3M (TC)

JE150317780 10214-1210PE=14/MDR/RC/RA/SMTRECP/M2.5/SCW/20MIN

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Connector Type	Termination	Number of Positions	Features	Contact Finish	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature	Mounting Type
3M (TC) 10214-6212VC	2	Receptacle	Solder	14	Shielded	Gold	Outer Shroud Contacts	0.76 Ám	30 Áin	Housing/Shell	2.6 M	Panel Mount Through Hole
3M (TC) 10214-6202VC	2	Receptacle	Solder	14	Shielded	Gold	Outer Shroud Contacts	0.76 Ám	30 Áin	Housing/Shell	2.6 M	Panel Mount Through Hole
3M (TC) 10214-55G3PL	2	Receptacle	Solder	14	Board Lock Shielded	Gold	Outer Shroud Contacts	0.2 µm	7.87 µin	Housing/Shell (M2.5) Latchblocks		Panel Mount Right Angle Through Hole
3M (TC) 10214-55G3VC	2	Receptacle	Solder	14	Board Lock Shielded	Gold	Outer Shroud Contacts	0.76 Ám	30 Áin	Housing/Shell	2.6 M	Panel Mount Right Angle Through Hole
3M (TC) 10214-1210PE	2	Receptacle	Solder	14	Board Guide Shielded	Gold	Outer Shroud Contacts	0.51 µm	20 µin	Housing/Shell	2.6 M	Surface Mount Right Angle
3M (TC) 10214-1210VE	2	Receptacle	Solder	14	Board Guide Shielded	Gold	Outer Shroud Contacts	0.76 Ám	30 Áin	Housing/Shell	2.6 M	Surface Mount Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Receptacle Connector Surface Mount, Right Angle Solder
