T4081112003-000
ActiveTE Connectivity Raychem Cable Protection

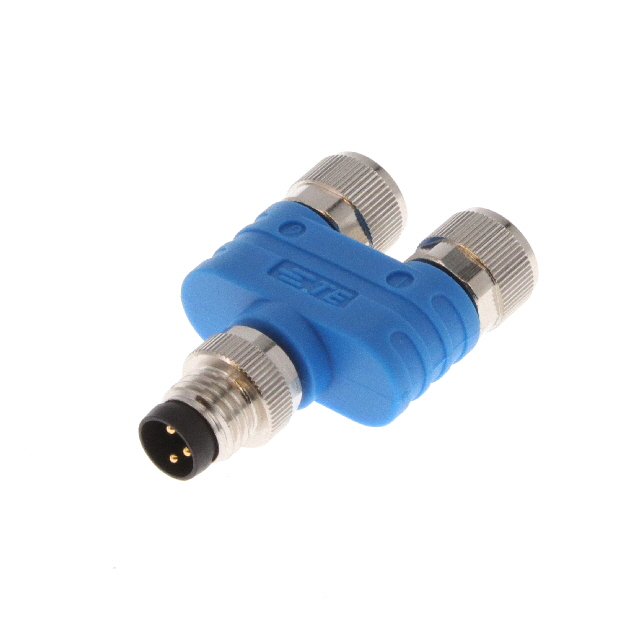

SENSOR SPLITTER, 3P M8 T DISTRIBUTOR, Y - STYLE, CABLE MOUNT, 3 POSITION M8 PLUG
Deep-Dive with AI
Search across all available documentation for this part.
T4081112003-000
ActiveTE Connectivity Raychem Cable Protection
SENSOR SPLITTER, 3P M8 T DISTRIBUTOR, Y - STYLE, CABLE MOUNT, 3 POSITION M8 PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T4081112003-000 |
|---|---|
| Connector Style | Distributor Y-Shaped |
| Convert From (Adapter End) | Male Pins |
| Convert To (Adapter End) | Female Sockets (2) |
| Current Rating (Amps) | 3 A |
| Features | Coupling Nut |
| Housing Color | Blue |
| Housing Material | Polyamide (PA), Nylon |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions (Convert From) | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation (Convert From) | A |
| Orientation (Convert To) | A |
| Shell Size - Insert (Convert From) | M8 |
| Shell Size - Insert (Convert To) [custom] | M8 |
| Shielding | Unshielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.59 | |
| 10 | $ 13.31 | |||
| 100 | $ 11.12 | |||
| 1000 | $ 9.56 | |||
Description
General part information
T40811 Series
3 Position Circular Connector, Cable-to-Cable, Sealable, Wire & Cable, Signal, Cable Mount (Free-Hanging), Reverse Gender, Plastic, M8 Connector
