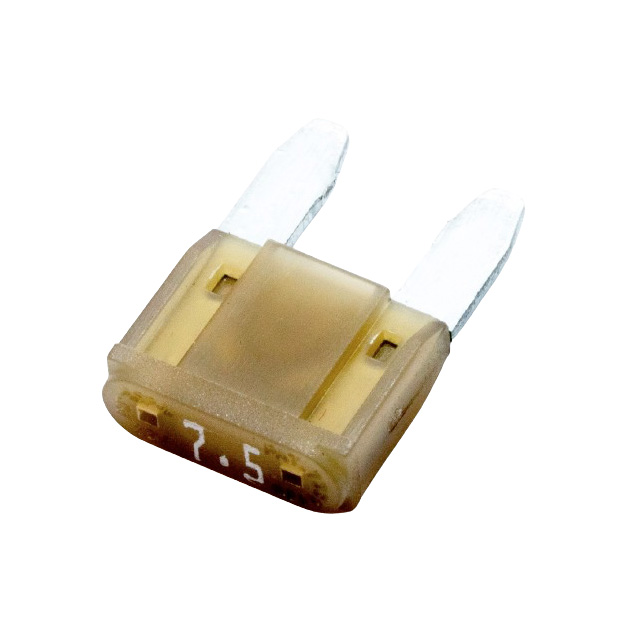

ANM-7.5A
ActiveOptiFuse
FUSE AUTO 7.5A 32VDC BLADE MINI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANM-7.5A
ActiveOptiFuse
FUSE AUTO 7.5A 32VDC BLADE MINI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANM-7.5A |
|---|---|
| Approval Agency | ISO, SAE |
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Brown |
| Current Rating (Amps) | 7.5 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | Blade, Miniature |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.429 " |
| Size / Dimension [x] | 10.9 mm |
| Size / Dimension [y] | 0.15 " |
| Size / Dimension [y] | 3.8 mm |
| Size / Dimension [z] | 9.2 mm |
| Size / Dimension [z] | 0.362 in |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.22 | |
| 10 | $ 0.21 | |||
| 25 | $ 0.21 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
Description
General part information
ANM-7.5 Series
7.5 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
