MBG30R-1

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 30POS PNL MT

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 30POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	MBG30R-1

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Insert Material	Thermoplastic, Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	30
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material	Thermoplastic Polyester
Shell Size - Insert	30
Shielding	Unshielded
Type	For Male Pins

Part	Connector Type	Shell Material	Insert Material	Shell Size - Insert	Type	Material Flammability Rating	Number of Positions	Contact Shape	Housing Color	Contact Size	Fastening Type	Contact Type	Shielding	Mounting Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Includes	For Use With/Related Products	Color	Cable Exit	Material	Features	Cable Opening [custom]	Cable Opening [custom]	Mounting Feature
Souriau-Sunbank by Eaton MBG30P-1	Plug Housing	Thermoplastic Polyester	Thermoplastic Halogen Free	30	For Female Sockets	UL94 V-0	30	Circular	Black	16	Latch Lock	Crimp	Unshielded	Free Hanging (In-Line)	Contacts Not Included	-55 °C	125 °C
Souriau-Sunbank by Eaton MBG30S2					Backshell Cable Clamp	UL94 V-0												1 Backshell 2 Screws 3 pc Cable Clamp	MBG Connectors	Black	180 °	Thermoplastic Glass Filled	Clamp Screws	1.051 in	26.7 mm
Souriau-Sunbank by Eaton MBG30R-1	Receptacle Housing	Thermoplastic Polyester	Thermoplastic Halogen Free	30	For Male Pins	UL94 V-0	30	Circular	Black	16	Latch Lock	Crimp	Unshielded		Contacts Not Included	-55 °C	125 °C									Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

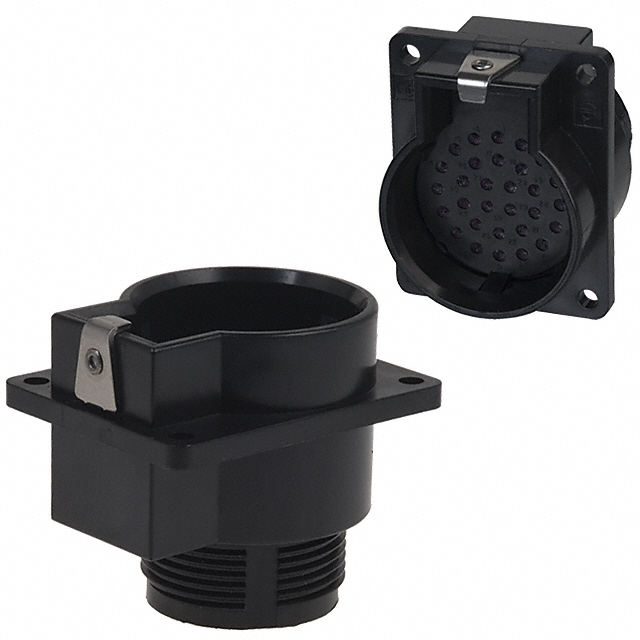

30 Position Circular Connector Receptacle Housing Panel Mount
