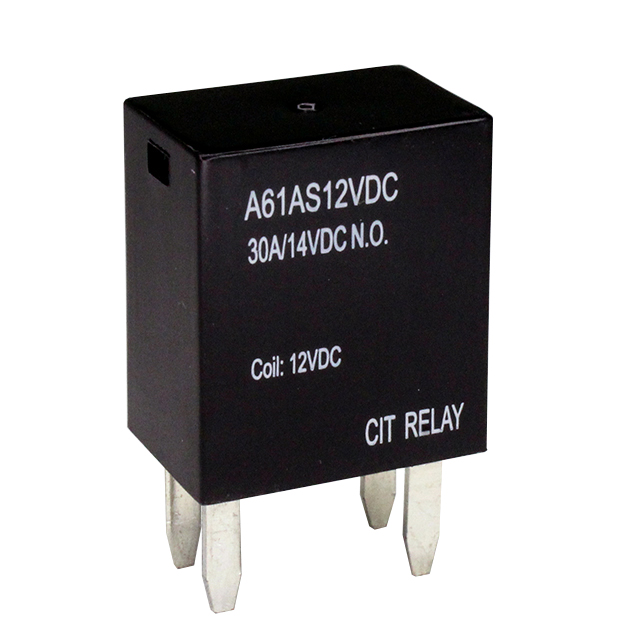

A61AS12VDC.9D
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPST 30A 12V
Deep-Dive with AI
Search across all available documentation for this part.
A61AS12VDC.9D
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPST 30A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A61AS12VDC.9D |
|---|---|
| Coil Current | 75 mA |
| Coil Power | 900 mW |
| Coil Resistance | 160 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 30 A |
| Features | Sealed - Fully, Diode |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 5 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 2 ms |
| Switching Voltage | 75 VDC |
| Termination Style | PC Pin |
A61AS Series
| Part | Termination Style | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Mounting Type | Switching Voltage | Operate Time | Contact Form | Coil Voltage | Must Release Voltage | Release Time | Must Operate Voltage | Coil Resistance | Coil Current | Coil Power | Contact Rating (Current) | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CIT Relay and Switch | PC Pin | Non Latching | 85 °C | -40 °C | Diode Sealed - Fully | Through Hole | 75 VDC | 5 ms | SPST-NO (1 Form A) | 24 VDC | 2.4 VDC | 2 ms | 16.8 VDC | 436 Ohms | 55 mA | 1.3 W | 30 A | Silver Tin Oxide (AgSnO) |
CIT Relay and Switch | PC Pin | Non Latching | 85 °C | -40 °C | Resistor Sealed - Fully | Through Hole | 75 VDC | 5 ms | SPST-NO (1 Form A) | 24 VDC | 2.4 VDC | 2 ms | 16.8 VDC | 436 Ohms | 55 mA | 1.3 W | 30 A | Silver Tin Oxide (AgSnO) |
CIT Relay and Switch | PC Pin | Non Latching | 85 °C | -40 °C | Resistor Sealed - Fully | Through Hole | 75 VDC | 5 ms | SPST-NO (1 Form A) | 12 VDC | 1.2 VDC | 2 ms | 8.4 VDC | 109 Ohms | 110.1 mA | 1.3 W | 30 A | Silver Tin Oxide (AgSnO) |
CIT Relay and Switch | PC Pin | Non Latching | 85 °C | -40 °C | Sealed - Fully | Through Hole | 75 VDC | 5 ms | SPST-NO (1 Form A) | 12 VDC | 1.2 VDC | 2 ms | 8.4 VDC | 109 Ohms | 110.1 mA | 1.3 W | 30 A | Silver Tin Oxide (AgSnO) |
CIT Relay and Switch | PC Pin | Non Latching | 85 °C | -40 °C | Diode Sealed - Fully | Through Hole | 75 VDC | 5 ms | SPST-NO (1 Form A) | 12 VDC | 1.2 VDC | 2 ms | 8.4 VDC | 160 Ohms | 75 mA | 900 mW | 30 A | Silver Tin Oxide (AgSnO) |
CIT Relay and Switch | PC Pin | Non Latching | 85 °C | -40 °C | Micro 280 ISO Resistor Sealed - Fully | Through Hole | 75 VDC | 5 ms | SPST-NO (1 Form A) | 24 VDC | 2.4 VDC | 2 ms | 16.8 VDC | 640 Ohms | 37.5 mA | 900 mW | 30 A | Silver Tin Oxide (AgSnO) |
CIT Relay and Switch | PC Pin | Non Latching | 85 °C | -40 °C | Micro 280 ISO Sealed - Fully | Through Hole | 75 VDC | 5 ms | SPST-NO (1 Form A) | 24 VDC | 2.4 VDC | 2 ms | 16.8 VDC | 436 Ohms | 55 mA | 1.3 W | 30 A | Silver Tin Oxide (AgSnO) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.55 | |
| 10 | $ 2.39 | |||
| 25 | $ 2.12 | |||
| 50 | $ 2.02 | |||
| 100 | $ 1.91 | |||
| 250 | $ 1.70 | |||
| 450 | $ 1.59 | |||
| 950 | $ 1.48 | |||
| 4900 | $ 1.43 | |||
Description
General part information
A61AS Series
RELAY AUTOMOTIVE SPST 30A 12V
