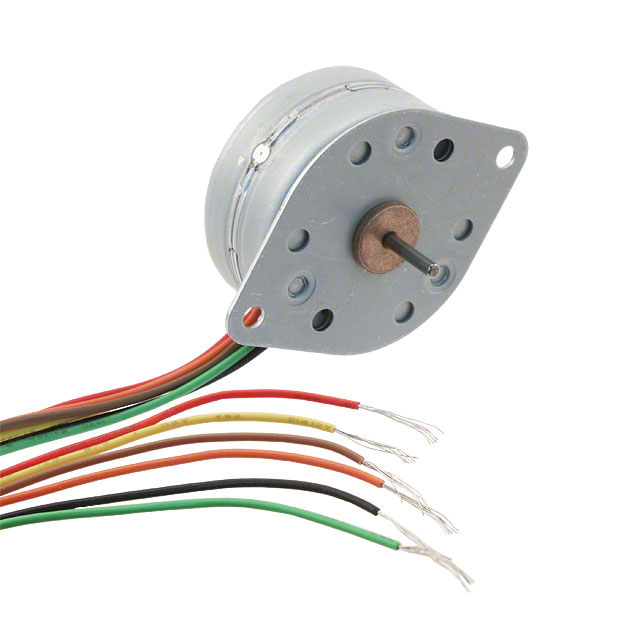

35M048B2U
ActivePortescap
STEPPER MOTOR PM UNIPOLAR 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
35M048B2U
ActivePortescap
STEPPER MOTOR PM UNIPOLAR 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 35M048B2U |
|---|---|
| Accuracy | 15 % |
| Coil Resistance | 72 Ohms |
| Coil Type | Unipolar |
| Current Rating (Amps) | 0.17 A |
| Diameter - Shaft [diameter] | 2 mm |
| Diameter - Shaft [diameter] | 0.079 in |
| Features | Round Shaft |
| Length - Shaft and Bearing [x] | 0.445 in |
| Length - Shaft and Bearing [x] | 11.3 mm |
| Mounting Hole Spacing | 42 mm |
| Mounting Hole Spacing | 1.65 in |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Rotor Inertia | 2 gcm˛ |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 1.42 in |
| Size / Dimension [diameter] | 35.94 mm |
| Step Angle | 7.5 ° |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 18.35 mNm |
| Torque - Holding (oz-in / mNm) | 2.6 oz-in |
| Type | Permanent Magnet |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.91 | |
| 5 | $ 35.79 | |||
| 10 | $ 33.56 | |||
| 25 | $ 32.44 | |||
| 50 | $ 31.32 | |||
| 100 | $ 30.20 | |||
| 250 | $ 29.75 | |||
Description
General part information
35M048 Series
Unipolar Stepper Motor Permanent Magnet Frame Size 48.0 Step 170 mA 12VDC
