UPD78F1203MC-CAB-AX

Active

Renesas Electronics Corporation

16-BIT LOW-POWER MICROCONTROLLERS FOR INVERTER AND MOTOR CONTROL APPLICATIONS (NON PROMOTION)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UPD78F1203MC-CAB-AX

Active

Renesas Electronics Corporation

16-BIT LOW-POWER MICROCONTROLLERS FOR INVERTER AND MOTOR CONTROL APPLICATIONS (NON PROMOTION)

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UPD78F1203MC-CAB-AX

Connectivity	LINbus, 3-Wire SIO, UART/USART, I2C
Core Processor	78 K, 0 R
Core Size	16-Bit
Data Converters [custom]	10 b
Data Converters [custom]	6
Mounting Type	Surface Mount
Number of I/O	21 I/O
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

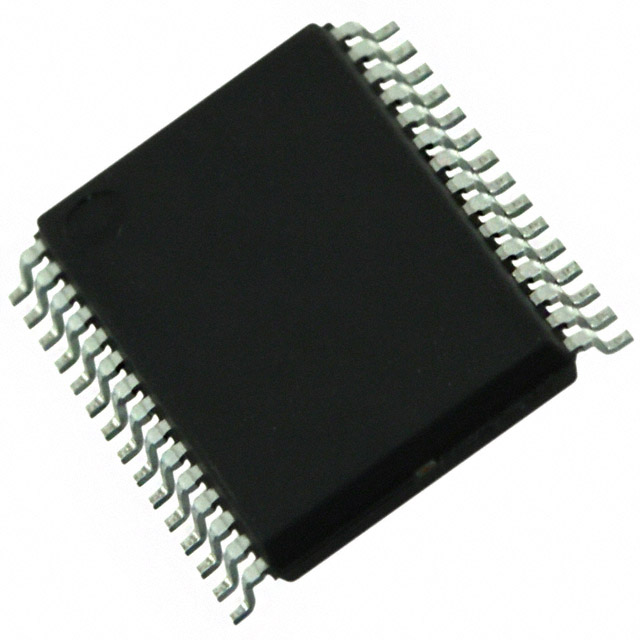

Package / Case	30-LSSOP
Package / Case	0.24 in
Package / Case	6.1 mm
Peripherals	DMA, LVD, PWM, POR, WDT
Program Memory Size	32 KB
Program Memory Type	FLASH
RAM Size	1.5 K
Speed	40 MHz
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.7 V

UPD78F1233 Series

16-bit Low-power Microcontrollers for Inverter and Motor Control Applications (Non Promotion)

Part	Program Memory Size	Data Converters [custom]	Data Converters [custom]	Core Size	Operating Temperature [Max]	Operating Temperature [Min]	Number of I/O	RAM Size	Speed	Core Processor	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Mounting Type	Package / Case	Package / Case	Package / Case	Connectivity	Program Memory Type	Oscillator Type	Peripherals	Data Converters	Data Converters	Supplier Device Package	Data Converters [x]	Data Converters [y]
Renesas Electronics Corporation UPD78F1203MC-CAB-AX	32 KB	10 b	6	16-Bit	85 °C	-40 °C	21 I/O	1.5 K	40 MHz	0 R 78 K	2.7 V	5.5 V	Surface Mount	30-LSSOP	0.24 in	6.1 mm	3-Wire SIO I2C LINbus UART/USART	FLASH	Internal	DMA LVD POR PWM WDT
Renesas Electronics Corporation UPD78F1213GA-HAA-AX	32 KB			16-Bit	85 °C	-40 °C	36	1.5 K	40 MHz	0 R 78 K	2.7 V	5.5 V	Surface Mount	48-TQFP			3-Wire SIO I2C LINbus UART/USART	FLASH	Internal	DMA LVD POR PWM WDT	A/D	10 b 11
Renesas Electronics Corporation UPD78F1201MC-CAB-AX	16 KB	10 b	6	16-Bit	85 °C	-40 °C	21 I/O	1 K	40 MHz	0 R 78 K	2.7 V	5.5 V	Surface Mount	30-LSSOP	0.24 in	6.1 mm	3-Wire SIO I2C LINbus UART/USART	FLASH	Internal	DMA LVD POR PWM WDT
Renesas Electronics Corporation UPD78F1233GB-GAH-AX	32 KB			16-Bit	85 °C	-40 °C	50 I/O	1.5 K	40 MHz	0 R 78 K	2.7 V	5.5 V	Surface Mount	64-LQFP			3-Wire SIO I2C LINbus UART/USART	FLASH	Internal	DMA LVD POR PWM WDT		10 b 12
Renesas Electronics Corporation UPD78F1215GA(R)-HAA-AX	64 KB			16-Bit	85 °C	-40 °C	41		20 MHz	0 R 78 K	2.7 V	5.5 V	Surface Mount	48-TQFP			3-Wire SIO I2C LINbus UART/USART	FLASH	Internal	DMA LVD POR PWM WDT	A/D 11x10b SAR		48-TQFP (7x7)
Renesas Electronics Corporation UPD78F1211GB-GAF-AX	16 KB			16-Bit	85 °C	-40 °C	33 I/O	1 K	40 MHz	0 R 78 K	2.7 V	5.5 V	Surface Mount	44-LQFP			3-Wire SIO I2C LINbus UART/USART	FLASH	Internal	DMA LVD POR PWM WDT				10	10 b

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

UPD78F1233 Series

The 78K0R/Ix3 Group is supported only for customers who have already adopted these products. The RL78/G1F Group is recommended for new designs.
