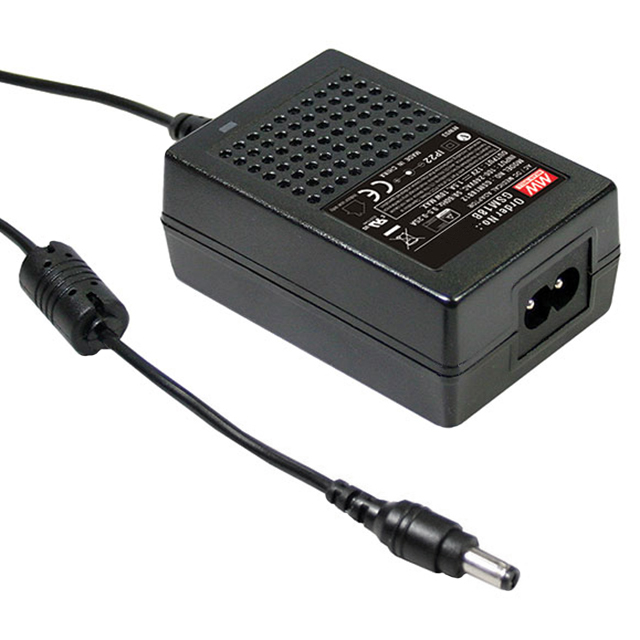

GSM18B18-P1J
ActiveMEAN WELL USA Inc.
AC/DC DESKTOP ADAPTER 18V 18W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSM18B18-P1J
ActiveMEAN WELL USA Inc.
AC/DC DESKTOP ADAPTER 18V 18W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GSM18B18-P1J |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cRUus, TUV |
| Cord Length | 70.9 in |
| Cord Length | 1.8 m |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | Level VI |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 18 W |
| Region Utilized | International |
| Size / Dimension [x] | 79 mm |
| Size / Dimension [x] | 3.11 in |
| Size / Dimension [y] | 2.13 in |
| Size / Dimension [y] | 54 mm |
| Size / Dimension [z] | 1.3 " |
| Size / Dimension [z] | 33 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Output | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 60 | $ 13.60 | |
Description
General part information
GSM18B18 Series
18V 18 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
