Technical Specifications
Parameters and characteristics for this part
| Specification | 32_SMA-50-0-1/111_NE |
|---|---|
| Adapter Series | SMA to SMA |
| Adapter Type | Plug to Plug |
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | SMA Plug, Male Pin |
| Convert To (Adapter End) | SMA Plug, Male Pin |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 59.93 | |
| 10 | $ 46.47 | |||
| 25 | $ 42.20 | |||
| 50 | $ 39.32 | |||
| 100 | $ 36.71 | |||
| 250 | $ 33.64 | |||
Description
General part information
32_SMA-50 Series

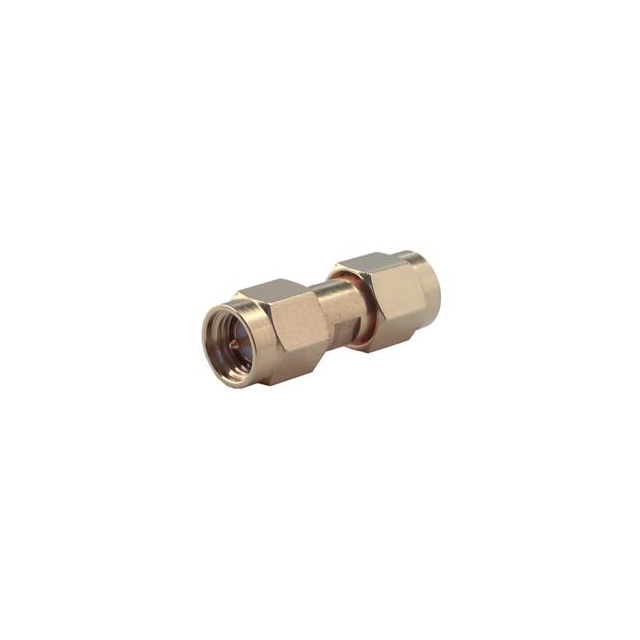

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
