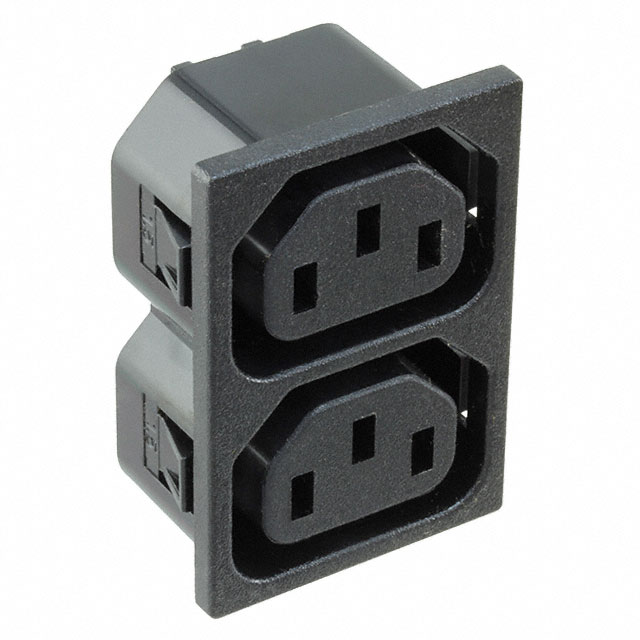

PX0714/2/15/28

Active

BULGIN LIMITED

MAINS POWER CONNECTOR, 10A, 250VAC, FEMALE, SOLDER TERMINAL, SOCKET,

Search across all available documentation for this part.

Active

BULGIN LIMITED

MAINS POWER CONNECTOR, 10A, 250VAC, FEMALE, SOLDER TERMINAL, SOCKET,

Technical Specifications

Parameters and characteristics for this part

Specification	PX0714/2/15/28

Accomodates a Fuse	False
Connector Style	IEC 320-2-2/F
Connector Type	Receptacle, Female Sockets
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Number of Positions	2
Number of Positions	3
Panel Cutout Dimensions [x]	32.51 mm
Panel Cutout Dimensions [y]	48.51 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Type	Connector Style	Current Rating - Appliance Inlet	Number of Positions	Number of Positions	Accomodates a Fuse	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Material Flammability Rating	Panel Thickness [custom]	Panel Thickness [custom]	Mounting Type	Termination	Voltage Rating - Appliance Inlet
BULGIN LIMITED PX0714/2/15/28	Receptacle Female Sockets	IEC 320-2-2/F	10 A	2	3		48.51 mm	32.51 mm	Unfiltered - Commercial	UL94 V-0	0.059 in	1.5 mm	Panel Mount Snap-In	Solder	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/F Panel Mount, Snap-In
