Technical Specifications

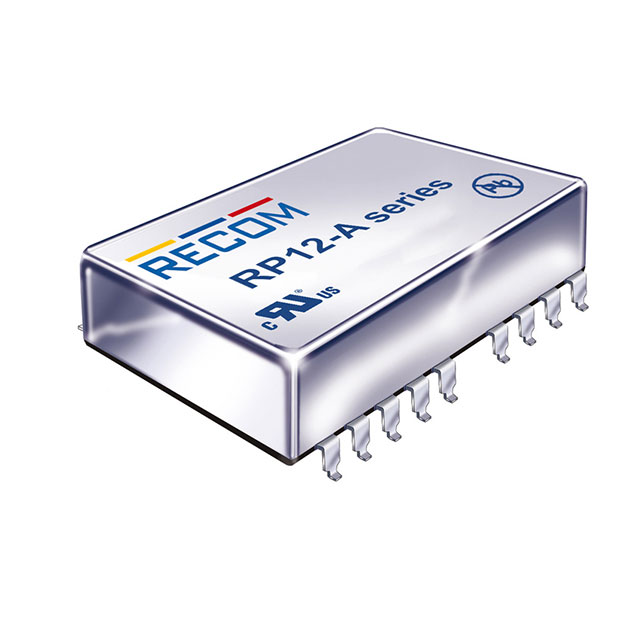

Parameters and characteristics for this part
| Specification | RP12-2415DA |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) | 400 mA |
| Current - Output (Max) | 400 mA |
| Efficiency | 88 % |
| Features | OVP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9 PC Pad |
| Package / Case | 24-DIP Module |
| Power (Watts) | 12 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
RP12-243.3 Series
Isolated DC/DC Converters - Through Hole 12W DC/DC 1.6kV REG 2:1 36-75in +/-12out
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Input (Max) [Max] | Features | Package / Case | Package / Case | Applications | Mounting Type | Type | Voltage - Isolation | Voltage - Output 1 | Number of Outputs | Control Features | Voltage - Output 2 | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Current - Output (Max) | Current - Output (Max) | Efficiency | Voltage - Input (Min) [Min] | Size / Dimension [z] | Size / Dimension [y] | Current - Output (Max) [Max] | Current - Output (Max) [Max] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RECOM Power | 65 °C | -40 °C | 12 W | 75 V | OCP OVP Remote On/Off SCP | 9 PC Pad | 24-DIP Module | ITE (Commercial) | Through Hole | Isolated Module | 1.6 kV | 15 V | 2 | Active High Enable | -15 V | 31.8 mm | 0.4 " | 1.25 " | 10.2 mm | 0.8 in | 20.3 mm | 400 mA | 400 mA | 87 % | 18 V | |||||
RECOM Power | 65 °C | -40 °C | 12 W | 36 V | OCP OVP Remote On/Off SCP | 24-SMD Module 18 Leads | ITE (Commercial) | Surface Mount | Isolated Module | 1.6 kV | 15 V | 1 | Active High Enable | 32 mm | 0.44 " | 1.26 in | 0.8 in | 86 % | 9 V | 11.2 mm | 20.3 mm | 800 mA | ||||||||
RECOM Power | 65 °C | -40 °C | 12 W | 36 V | OCP OVP Remote On/Off SCP | 9 PC Pad | 24-DIP Module | ITE (Commercial) | Through Hole | Isolated Module | 1.6 kV | 15 V | 1 | Active High Enable | 31.8 mm | 0.4 " | 1.25 " | 10.2 mm | 0.8 in | 20.3 mm | 86 % | 9 V | 800 mA | |||||||
RECOM Power | 65 °C | -40 °C | 12 W | 36 V | OCP OVP Remote On/Off SCP | 24-SMD Module 18 Leads | ITE (Commercial) | Surface Mount | Isolated Module | 1.6 kV | 15 V | 2 | Active High Enable | -15 V | 32 mm | 0.44 " | 1.26 in | 0.8 in | 400 mA | 400 mA | 86 % | 9 V | 11.2 mm | 20.3 mm | ||||||
RECOM Power | 61 °C | -40 °C | 12 W | 36 V | OCP OVP Remote On/Off SCP | 24-SMD Module 18 Leads | ITE (Commercial) | Surface Mount | Isolated Module | 1.6 kV | 5 V | 2 | Active High Enable | -5 V | 32 mm | 0.44 " | 1.26 in | 0.8 in | 84 % | 9 V | 11.2 mm | 20.3 mm | 1.2 A | 1.2 A | ||||||
RECOM Power | 65 °C | -40 °C | 12 W | 75 V | OCP OVP Remote On/Off SCP | 24-SMD Module 18 Leads | ITE (Commercial) | Surface Mount | Isolated Module | 1.6 kV | 5.1 V | 1 | Active High Enable | 32 mm | 0.44 " | 1.26 in | 0.8 in | 87 % | 18 V | 11.2 mm | 20.3 mm | 2.4 A | ||||||||
RECOM Power | 65 °C | -40 °C | 12 W | 36 V | OCP OVP Remote On/Off SCP | 24-SMD Module 18 Leads | ITE (Commercial) | Surface Mount | Isolated Module | 1.6 kV | 12 V | 1 | Active High Enable | 32 mm | 0.44 " | 1.26 in | 0.8 in | 86 % | 9 V | 11.2 mm | 20.3 mm | 1 A | ||||||||
RECOM Power | 61 °C | -40 °C | 12 W | 75 V | OCP OVP Remote On/Off SCP | 9 PC Pad | 24-DIP Module | ITE (Commercial) | Through Hole | Isolated Module | 1.6 kV | 5 V | 2 | Active High Enable | -5 V | 31.8 mm | 0.4 " | 1.25 " | 10.2 mm | 0.8 in | 20.3 mm | 85 % | 18 V | 1.2 A | 1.2 A | |||||
RECOM Power | 85 °C | -40 °C | 12 W | 36 V | OCP OVP Remote On/Off SCP | 9 PC Pad | 24-DIP Module | ITE (Commercial) | Through Hole | Isolated Module | 1.6 kV | 15 V | 2 | Active High Enable | -15 V | 31.8 mm | 0.4 " | 1.25 " | 10.2 mm | 0.8 in | 20.3 mm | 400 mA | 400 mA | 88 % | 18 V | |||||
RECOM Power | 65 °C | -40 °C | 12 W | 36 V | OCP OVP Remote On/Off SCP | 24-SMD Module 18 Leads | ITE (Commercial) | Surface Mount | Isolated Module | 1.6 kV | 5.1 V | 1 | Active High Enable | 32 mm | 0.44 " | 1.26 in | 0.8 in | 87 % | 9 V | 11.2 mm | 20.3 mm | 2.4 A |
