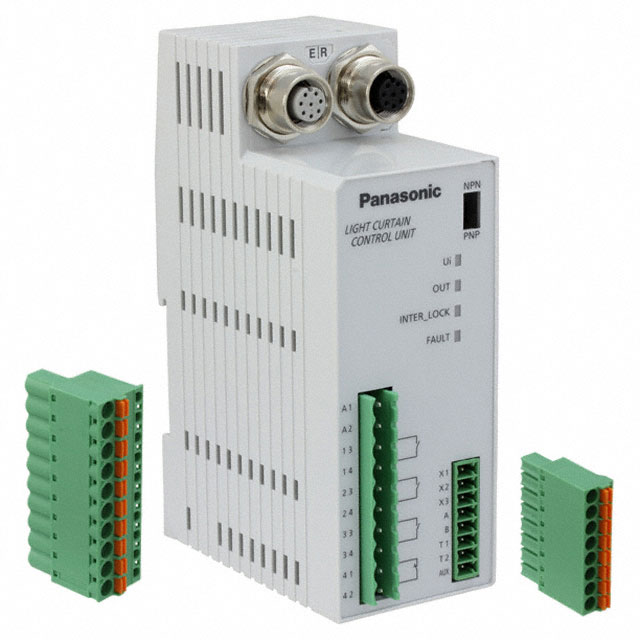

SF-C11

Active

Panasonic Industrial Automation Sales

CONTROL SAFETY GEN PURPOSE 24V

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

CONTROL SAFETY GEN PURPOSE 24V

Technical Specifications

Parameters and characteristics for this part

Specification	SF-C11

Approval Agency	UL, S-Mark, CE, cULus, TUV
Auxiliary Outputs and Type	Solid State, Relay
Contact Rating @ Voltage	230 VAC, 6 A
Controller Type	General Purpose
Features	Test Output
Ingress Protection	IP40
Mounting Type	DIN Rail
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Safety Category	Category 4, PLe
Safety Outputs and Type	Relay (3)
Termination Style	Spring Terminal, Circular
Voltage - Supply	24 VDC
Weight	319.78 g
Weight	0.705 lb

Part	Voltage - Supply	Ingress Protection	Weight	Weight	Contact Rating @ Voltage	Approval Agency	Auxiliary Outputs and Type	Mounting Type	Safety Outputs and Type	Termination Style	Safety Category	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Controller Type	Features
Panasonic Industrial Automation Sales SF-C11	24 VDC	IP40	319.78 g	0.705 lb	6 A 230 VAC	CE cULus S-Mark TUV UL	Relay Solid State	DIN Rail	Relay (3)	Circular Spring Terminal	Category 4 PLe	55 °C	-10 °C	General Purpose	Test Output
Panasonic Industrial Automation Sales SF-C13	24 VDC	IP40	200.03 g	0.441 lb	4 A 230 VAC	CE cULus S-Mark TUV UL	Relay Solid State	DIN Rail	Relay (3)	Spring Terminal	Category 4 PLe	55 °C	-10 °C	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Machine Safety Controller General Purpose 24VDC Supply DIN Rail
