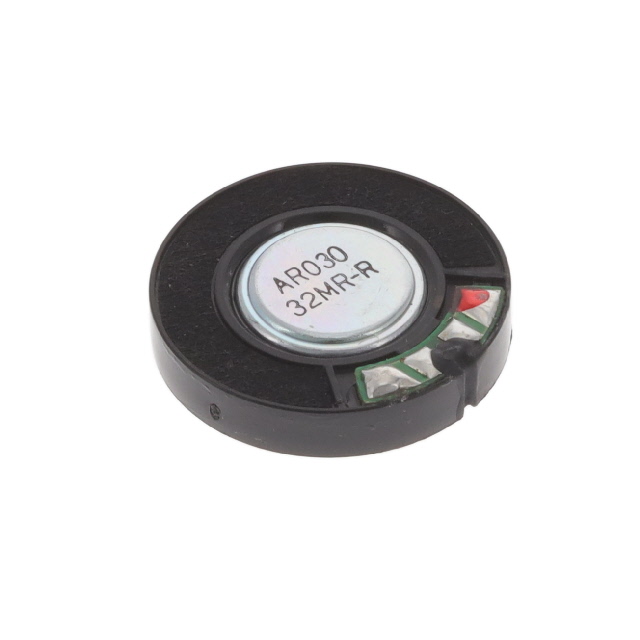

AR03032MR-R

Active

PUI AUDIO

RECEIVER, 60HZ TO 10KHZ, 32OHM, 20MW, 115DB, ROUND, 29.8 MM X 29.8 MM X 6.8 MM

Search across all available documentation for this part.

Active

PUI AUDIO

RECEIVER, 60HZ TO 10KHZ, 32OHM, 20MW, 115DB, ROUND, 29.8 MM X 29.8 MM X 6.8 MM

Technical Specifications

Parameters and characteristics for this part

Specification	AR03032MR-R

Efficiency - dBA	115 dBA
Efficiency - Testing	1mW/10mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency Range [Max]	10 kHz
Frequency Range [Min]	60 Hz
Height - Seated (Max) [Max]	0.287 in
Height - Seated (Max) [Max]	7.3 mm
Impedance	32 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	30 mW
Power - Rated	20 mW
Shape	Round
Size / Dimension [diameter]	1.142 in
Size / Dimension [diameter]	29 mm
Technology	Magnetic
Termination	Solder Pads
Type	Receiver

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency Range [Max]	Frequency Range [Min]	Power - Rated	Port Location	Efficiency - Type	Power - Max [Max]	Termination	Type	Material - Magnet	Material - Cone	Technology	Efficiency - dBA	Efficiency - Testing	Shape	Size / Dimension [diameter]	Size / Dimension [diameter]	Impedance
PUI AUDIO AR03032MR-R	0.287 in	7.3 mm	10 kHz	60 Hz	20 mW	Top	Sound Pressure Level (SPL)	30 mW	Solder Pads	Receiver	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	Magnetic	115 dBA	1mW/10mm	Round	1.142 in	29 mm	32 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

32 Ohms Receiver Speaker 20 mW 60 Hz ~ 10 kHz Top Round
