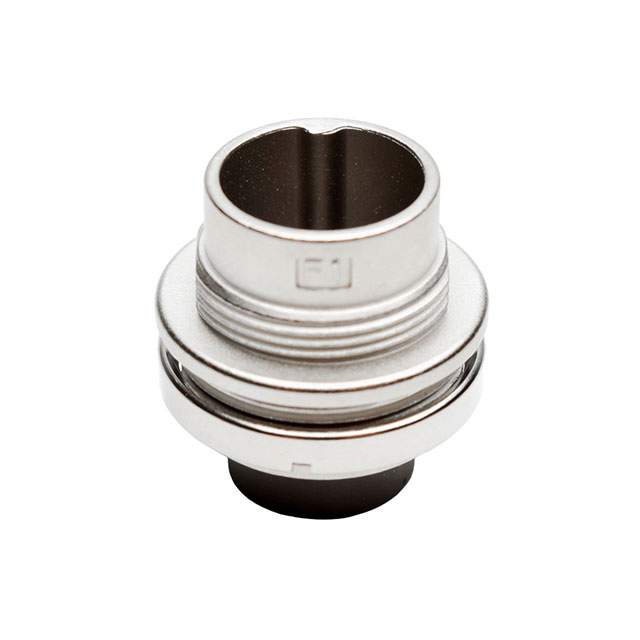

C091 11W008 000 2

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 8POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 8POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11W008 000 2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP69K, IP65, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-8
Shielding	Shielded
Type	For Male Pins

Part	Contact Shape	Orientation	Connector Type	Shell Finish	Insert Material	Contact Type	Number of Positions	Shell Size - Insert	Mounting Feature	Contact Size	Housing Color	Shell Material	Note	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Type	Shielding
Amphenol Tuchel Industrial C091 11W008 000 2	Circular	Keyed	Receptacle Housing	Nickel	Thermoplastic	Crimp	8	M16-8	Bulkhead - Rear Side Nut	1.5 mm	Silver	Die Cast	Contacts Not Included	IP65 IP67 IP69K	100 °C	-40 °C	UL94 V-0	For Male Pins	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 6.58

General part information

8 Position Circular Connector Receptacle Housing Panel Mount
