WM013RI,GY

Active

Serpac

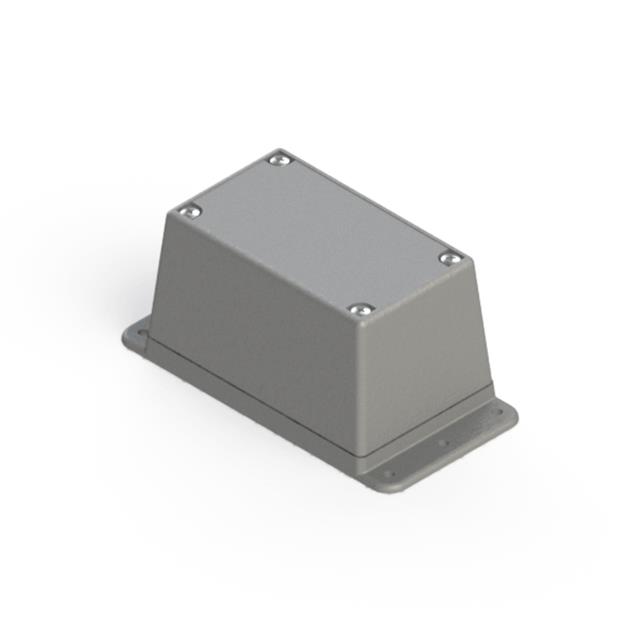

BOX ABS GRAY 3.62"L X 2.27"W

Deep-Dive with AI

Search across all available documentation for this part.

WM013RI,GY

Active

Serpac

BOX ABS GRAY 3.62"L X 2.27"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM013RI,GY

Area (L x W) [custom]	53 cm²
Area (L x W) [custom]	8.22 in²
Color	Gray
Container Type	Box
Design	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access
Height [z]	2.1 in
Height [z]	53.34 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	3.62 in
Size / Dimension [x]	91.95 mm
Size / Dimension [y]	57.66 mm
Size / Dimension [y]	2.27 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	72.12 g
Weight	0.159 lb

WM013 Series

Part	Color	Height [z]	Height [z]	Material	Features	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Design	Material Flammability Rating	Thickness	Thickness	Ratings	Weight	Weight	Container Type	Area (L x W)	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]
Serpac WM013,GY	Gray	2.1 in	53.34 mm	Plastic ABS	Mounting Flange PCB Supports Wall Mount	52.3 cm˛	8.1 in˛	91.44 mm	57.15 mm	3.6 in	2.25 in	Cover Included	UL94 HB	2.54 mm	0.1 in	IP40 NEMA 1	72.12 g	0.159 lb	Box
Serpac WM013RI,BK	Black	2.1 in	53.34 mm	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount			91.95 mm	57.66 mm	3.62 in	2.27 in	Cover Included	UL94 HB	2.54 mm	0.1 in	IP40 NEMA 1	72.12 g	0.159 lb	Box	53 cm²	8.22 in²
Serpac WM013R,AL	Almond	2.1 in	53.34 mm	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount			91.95 mm	57.66 mm	3.62 in	2.27 in	Cover Included	UL94 HB	2.54 mm	0.1 in	IP40 NEMA 1	72.12 g	0.159 lb	Box	53 cm²	8.22 in²
Serpac WM013R,BK	Black	2.1 in	53.34 mm	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount			91.95 mm	57.66 mm	3.62 in	2.27 in	Cover Included	UL94 HB	2.54 mm	0.1 in	IP40 NEMA 1	72.12 g	0.159 lb	Box	53 cm²	8.22 in²
Serpac WM013R,GY	Gray	2.1 in	53.34 mm	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount			91.95 mm	57.66 mm	3.62 in	2.27 in	Cover Included	UL94 HB	2.54 mm	0.1 in	IP40 NEMA 1	72.12 g	0.159 lb	Box	53 cm²	8.22 in²
Serpac WM013,BK	Black	2.1 in	53.34 mm	Plastic ABS	Mounting Flange PCB Supports Wall Mount			91.44 mm	57.15 mm	3.6 in	2.25 in	Cover Included	UL94 HB	2.54 mm	0.1 in	IP40 NEMA 1	72.12 g	0.159 lb	Box	52.3 cm²	8.1 in²
Serpac WM013RI,GY	Gray	2.1 in	53.34 mm	Plastic ABS	Front Access Mounting Flange PCB Supports Wall Mount			91.95 mm	57.66 mm	3.62 in	2.27 in	Cover Included	UL94 HB	2.54 mm	0.1 in	IP40 NEMA 1	72.12 g	0.159 lb	Box			53 cm²	8.22 in²
Serpac WM013,AL	Almond	2.1 in	53.34 mm	Plastic ABS	Mounting Flange PCB Supports Wall Mount			91.44 mm	57.15 mm	3.6 in	2.25 in	Cover Included	UL94 HB	2.54 mm	0.1 in	IP40 NEMA 1	72.12 g	0.159 lb	Box	52.3 cm²	8.1 in²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.71

Description

General part information

WM013 Series

Box Plastic, ABS Gray Cover Included 3.620" L x 2.270" W (91.95mm x 57.66mm) X 2.100" (53.34mm)

Documents

Technical documentation and resources

No documents available
