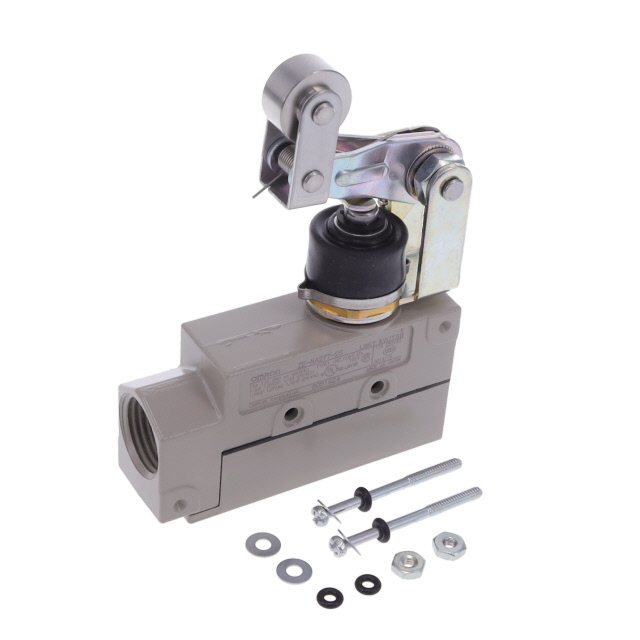

ZE-NA277-2S

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ZE-NA277-2S

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	500 mA, 15 A
Differential Travel	0.016 "
Differential Travel	0.4 mm
Electrical Life	500000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	640 gf
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-10 °C
Overtravel	0.235 in
Overtravel	6 mm
Pretravel	0.197 in
Pretravel	5 mm
Release Force	230 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

Part	Voltage Rating - DC	Mechanical Life	Termination Style	Circuit	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Ingress Protection	Operating Force	Current Rating (Amps)	Overtravel	Overtravel	Release Force	Electrical Life	Voltage Rating - AC	Switch Function	Pretravel	Pretravel	Differential Travel	Differential Travel
Omron Electronics Inc-EMC Div ZE-NA277-2	125 VDC	10000000 Cycles	Screw Terminal	SPDT	Chassis Mount	80 C	-10 °C	Lever Roller	IP65 - Dust Tight Water Resistant	640 gf	15 A 500 mA	0.235 in	6 mm	230 gf	500000 Cycles	125 V	On-Mom	0.197 in	5 mm	0.016 "	0.4 mm
Omron Electronics Inc-EMC Div ZE-NA277-2S	125 VDC	10000000 Cycles	Screw Terminal	SPDT	Chassis Mount	80 C	-10 °C	Lever Roller	IP65 - Dust Tight Water Resistant	640 gf	15 A 500 mA	0.235 in	6 mm	230 gf	500000 Cycles	125 V	On-Mom	0.197 in	5 mm	0.016 "	0.4 mm
