19003804501

Active

Amphenol Socapex

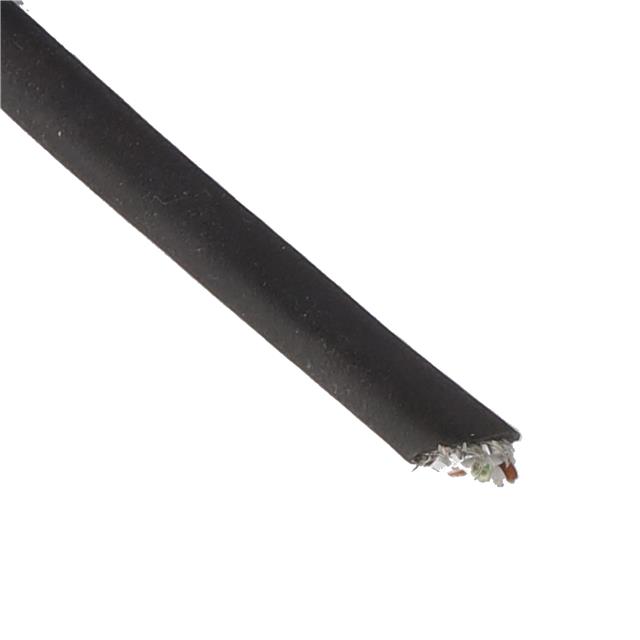

CABLE CAT5E 8COND 24AWG BLK 300M

Search across all available documentation for this part.

Active

Amphenol Socapex

CABLE CAT5E 8COND 24AWG BLK 300M

Technical Specifications

Parameters and characteristics for this part

Specification	19003804501

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.283 in
Jacket (Insulation) Diameter [diameter]	7.19 mm
Jacket (Insulation) Material	Plastic
Jacket (Insulation) Thickness	0.0394 in
Jacket (Insulation) Thickness	1.001 mm
Jacket Color	Black
Length	984.3 ft
Length	300 m
Number of Conductors	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-70 °C
Shield Coverage	80 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Wire Gauge	24 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Jacket Color	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Cable Type	Shield Material	Conductor Insulation	Wire Gauge	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Shield Coverage
Amphenol Socapex 19003804501	0.0394 in	1.001 mm	32 AWG	7	984.3 ft	300 m	Black	Plastic	105 ░C	-70 °C	8	Multi-Pair Cat5e	Aluminum Copper Tinned	Polyethylene (PE)	24 AWG	Braid Foil	0.283 in	7.19 mm	Copper Tinned	80 % 100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4061.31

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 24 AWG Foil, Braid 984.3' (300.0m)

Technical documentation and resources

No documents available
