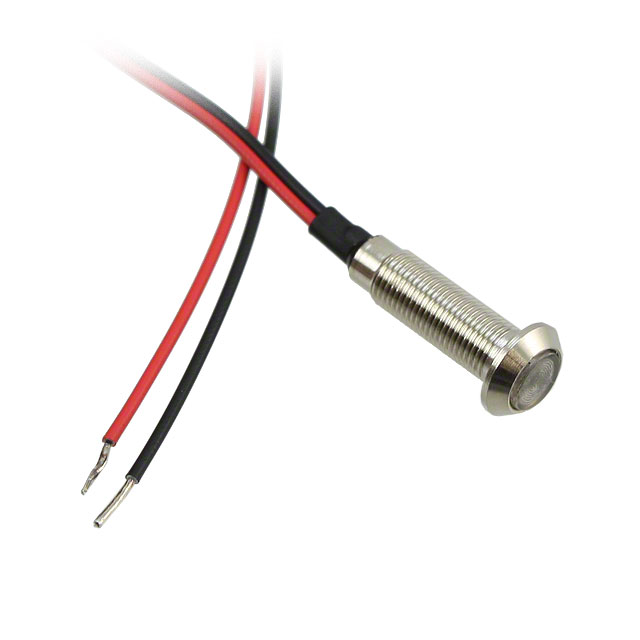

PM5-B5R2.0V
ActiveBivar Inc.
LED PANEL MOUNT INDICATOR, RED, 2 VDC, 5 MM, 20 MA, 39 MCD, IP67
Deep-Dive with AI
Search across all available documentation for this part.
PM5-B5R2.0V
ActiveBivar Inc.
LED PANEL MOUNT INDICATOR, RED, 2 VDC, 5 MM, 20 MA, 39 MCD, IP67
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM5-B5R2.0V |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Red |
| Lens Color | Red |
| Lens Size [diameter] | 5.1 mm |
| Lens Transparency | Fresnel |
| Millicandela Rating | 39 mcd |
| Panel Cutout Dimensions | 0.2 in |
| Panel Cutout Dimensions | 5.08 mm |
| Panel Cutout Shape | Round |
| Termination Style | Wire Leads |
| Termination Style | 5.9 " |
| Type | LED |
| Viewing Angle | 120 ° |
| Voltage | 2 V |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PM5-B5R2.0 Series
LED Panel Indicator Red Fresnel 120° 2V 20mA Wire Leads - 5.9" (150.00mm)
