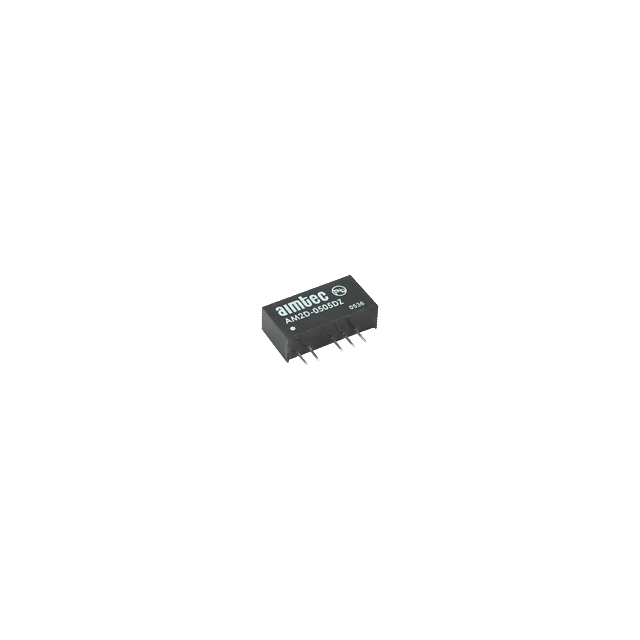

AM2D-1224DZ

Active

aimtec

DC DC CONVERTER +/-24V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM2D-1224DZ

Active

aimtec

DC DC CONVERTER +/-24V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM2D-1224DZ

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	42 mA
Current - Output (Max) [Max]	42 mA
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	2 W
Size / Dimension [x]	0.76 "
Size / Dimension [x]	19.5 mm
Size / Dimension [y]	6 mm
Size / Dimension [y]	0.24 "
Size / Dimension [z]	0.39 in
Size / Dimension [z]	10 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	13.2 V
Voltage - Input (Min) [Min]	10.8 V
Voltage - Isolation	1000 V
Voltage - Output 1 [Max]	24 V
Voltage - Output 1 [Min]	-24 V
Voltage - Output 2	-24 V

AM2D Series

...

Part	Applications	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Approval Agency	Voltage - Output 2	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Type	Number of Outputs	Power (Watts)	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Current - Output (Max)	Current - Output (Max)	Package / Case
aimtec AM2D-240909DZ	ITE (Commercial)	111 mA	111 mA	CE	9 V	26.4 V	21.6 V	Through Hole	Isolated Module	2	2 W	78 %	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	9 V	85 °C	-40 °C	1000 V
aimtec AM2D-1224DZ	ITE (Commercial)		42 mA	CE	-24 V	13.2 V	10.8 V	Through Hole	Isolated Module	2	2 W			10 mm		6 mm		19.5 mm		85 °C	-40 °C	1000 V	0.76 "	0.39 in	0.24 "	42 mA	-24 V	24 V
aimtec AM2D-1203DH52Z	ITE (Commercial)			CE	-3.3 V	13.2 V	10.8 V	Through Hole	Isolated Module	2	2 W	67 %		10 mm		6 mm		19.5 mm		85 °C	-40 °C	5.2 kV	0.76 "	0.39 in	0.24 "		-3.3 V	3.3 V
aimtec AM2D-0503DZ	ITE (Commercial)			CE	-3.3 V	5.5 V	4.5 V	Through Hole	Isolated Module	2	2 W	65 %		10 mm		6 mm		19.5 mm		85 °C	-40 °C	1000 V	0.76 "	0.39 in	0.24 "		-3.3 V	3.3 V
aimtec AM2D-2405DH30Z	ITE (Commercial)			CE	-5 V	26.4 V	21.6 V	Through Hole	Isolated Module	2	2 W	75 %		10 mm		6 mm		19.5 mm		85 °C	-40 °C	3000 V	0.76 "	0.39 in	0.24 "		-5 V	5 V
aimtec AM2D-0515SH60Z	ITE (Commercial)		134 mA	CE		5.5 V	4.5 V	Through Hole	Isolated Module	1	2 W			10 mm		6 mm		19.5 mm	15 V	85 °C	-40 °C	6000 V	0.76 "	0.39 in	0.24 "
aimtec AM2D-0507DH52Z	ITE (Commercial)			CE	-7.2 V	5.5 V	4.5 V	Through Hole	Isolated Module	2	2 W	72 %	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	7.2 V	85 °C	-40 °C	5.2 kV							139 mA	139 mA	7-SIP Module 5 Leads
aimtec AM2D-1207SZ	ITE (Commercial)		278 mA	CE		13.2 V	10.8 V	Through Hole	Isolated Module	1	2 W	80 %	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	7.2 V	85 °C	-40 °C	1000 V
aimtec AM2D-1205DH40Z	ITE (Commercial)			CE	-5 V	13.2 V	10.8 V	Through Hole	Isolated Module	2	2 W	75 %		10 mm		6 mm		19.5 mm		85 °C	-40 °C	4000 V	0.76 "	0.39 in	0.24 "		-5 V	5 V
aimtec AM2D-2409SH40Z	ITE (Commercial)		222 mA	CE		26.4 V	21.6 V	Through Hole	Isolated Module	1	2 W	80 %	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	9 V	85 °C	-40 °C	4000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.11
		5	$ 6.97
		10	$ 6.83
		15	$ 6.69
		25	$ 6.56
		50	$ 6.43
		100	$ 6.30
		230	$ 6.17
		440	$ 6.05

Description

General part information

AM2D Series

Isolated Module DC DC Converter 2 Output -24 ~ 24V -24V 42mA, 42mA 10.8V - 13.2V Input
