6385G1

Active

Anderson Power Products, Inc.

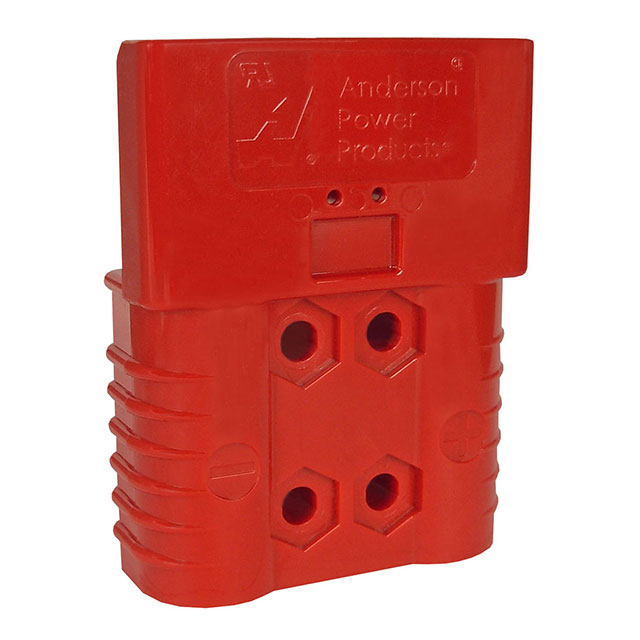

HEAVY DUTY POWER CONNECTORS SBX175 HOUSING ONLY RED

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

HEAVY DUTY POWER CONNECTORS SBX175 HOUSING ONLY RED

Technical Specifications

Parameters and characteristics for this part

Heavy Duty Power Connectors SBX175 HOUSING ONLY RED

Part	Connector Type	Mounting Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Rows	Current Rating (Amps)	Voltage Rating	Note	Material - Insulation	Material - Insulation	Contact Type	Contact Termination	Color	Stacking Direction
Anderson Power Products, Inc. 6385G1	Non-Gendered	Free Hanging (In-Line)	Spring Retention	-20 C	105 ░C	2	1	175 A	600 V	Contacts Not Included	Polycarbonate	PC	Non-Gendered	Crimp	Red	Side to Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heavy Duty Power Connectors SBX175 HOUSING ONLY RED
