VS-2EYH02-M3/H
ActiveVishay General Semiconductor - Diodes Division
DIODE GEN PURP 200V 2A SLIMSMAW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VS-2EYH02-M3/H
ActiveVishay General Semiconductor - Diodes Division
DIODE GEN PURP 200V 2A SLIMSMAW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VS-2EYH02-M3/H |
|---|---|
| Capacitance @ Vr, F | 12 pF |
| Current - Average Rectified (Io) | 2 A |
| Current - Reverse Leakage @ Vr | 2 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |

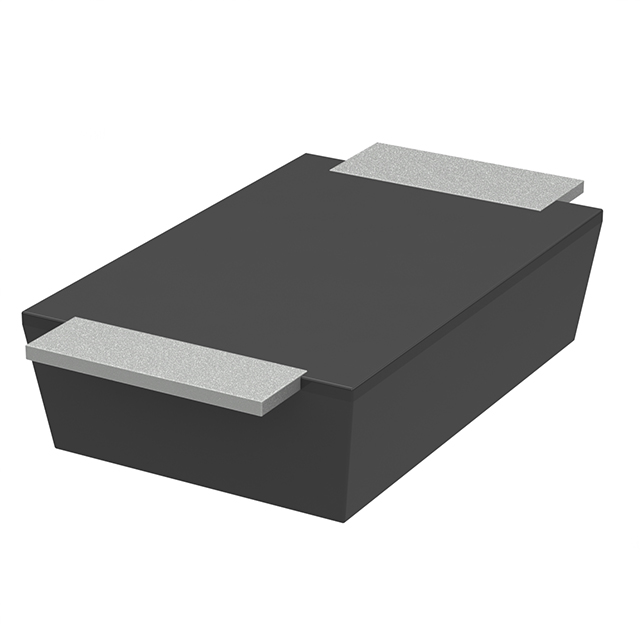

| Package / Case | SMA Flat Leads, DO-221AC |
| Reverse Recovery Time (trr) | 28 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SlimSMAW (DO-221AD) |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 930 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.40 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.40 | ||
| 10 | $ 0.34 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 3500 | $ 0.11 | ||
Description
General part information
2EYH02 Series
Diode 200 V 2A Surface Mount SlimSMAW (DO-221AD)
