74AUP3G14GM,125

Obsolete

Freescale Semiconductor - NXP

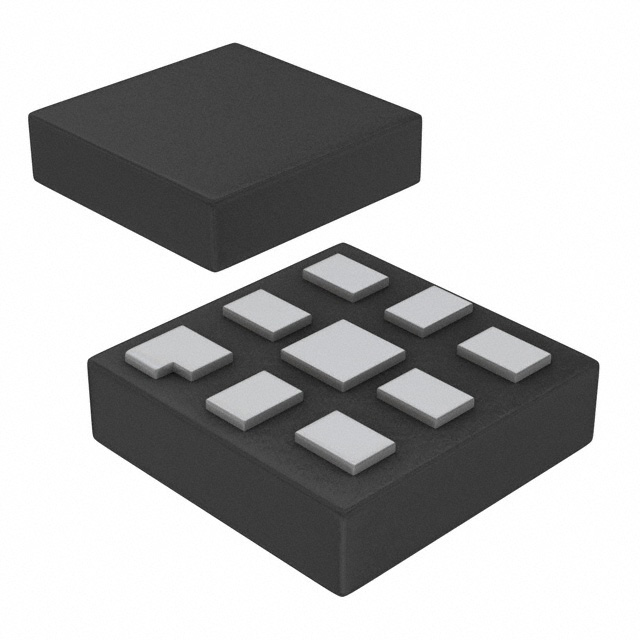

IC INVERT SCHMITT 3CH 3INP 8XQFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

74AUP3G14GM,125

Obsolete

Freescale Semiconductor - NXP

IC INVERT SCHMITT 3CH 3INP 8XQFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	74AUP3G14GM,125

Current - Output High, Low [custom]	4 mA
Current - Output High, Low [custom]	4 mA
Current - Quiescent (Max) [Max]	500 nA
Features	Schmitt Trigger
Input Logic Level - High [Max]	2.29 V
Input Logic Level - High [Min]	0.6 V
Input Logic Level - Low [Max]	0.88 V
Input Logic Level - Low [Min]	0.1 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	6.1 ns
Mounting Type	Surface Mount
Number of Circuits	3
Number of Inputs	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-XFQFN Exposed Pad
Supplier Device Package	8-XQFN (1.6x1.6)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	0.8 V

74AUP3G14GS Series

Low-power triple Schmitt trigger inverter

Part	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Max Propagation Delay @ V, Max CL	Number of Inputs	Package / Case	Number of Circuits	Mounting Type	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Logic Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Current - Quiescent (Max) [Max]	Current - Output High, Low [custom]	Current - Output High, Low [custom]
Freescale Semiconductor - NXP 74AUP3G14GNX	Schmitt Trigger	0.8 V	3.6 V	6.1 ns	3	8-XFDFN	3	Surface Mount	2.29 V	0.6 V	0.1 V	0.88 V	Inverter	8-XSON SOT833-1 (1.95x1)	-40 °C	125 °C	500 nA	4 mA	4 mA
Freescale Semiconductor - NXP 74AUP3G14GSX	Schmitt Trigger	0.8 V	3.6 V	6.1 ns	3	8-XFDFN	3	Surface Mount	2.29 V	0.6 V	0.1 V	0.88 V	Inverter	8-XSON (1.35x1)	-40 °C	125 °C	500 nA	4 mA	4 mA
Freescale Semiconductor - NXP 74AUP3G14GM,125	Schmitt Trigger	0.8 V	3.6 V	6.1 ns	3	8-XFQFN Exposed Pad	3	Surface Mount	2.29 V	0.6 V	0.1 V	0.88 V	Inverter	8-XQFN (1.6x1.6)	-40 °C	125 °C	500 nA	4 mA	4 mA
Freescale Semiconductor - NXP 74AUP3G14GTX	Schmitt Trigger	0.8 V	3.6 V	6.1 ns	3	8-XFDFN	3	Surface Mount	2.29 V	0.6 V	0.1 V	0.88 V	Inverter	8-XSON SOT833-1 (1.95x1)	-40 °C	125 °C	500 nA	4 mA	4 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

74AUP3G14GS Series

The 74AUP3G14 provides three inverting buffers with Schmitt trigger action which accept standard input signals. They are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.
