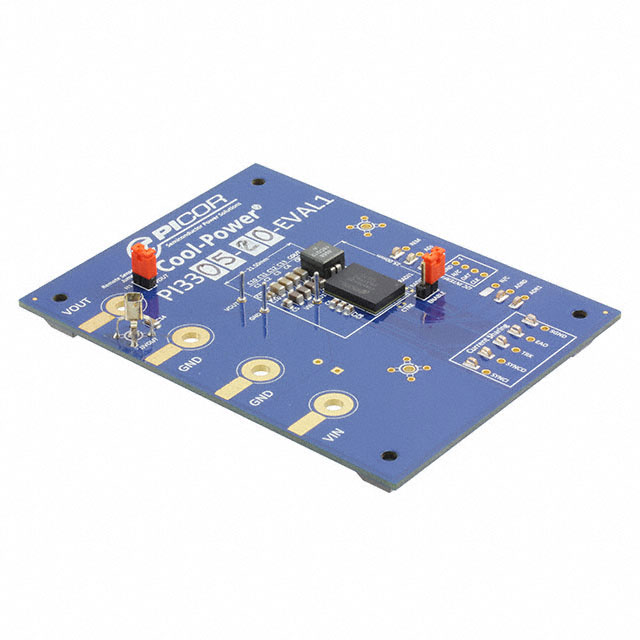

PI3305-20-EVAL1
ObsoleteVicor Corporation
EVAL BD PI3305-20
Deep-Dive with AI
Search across all available documentation for this part.
PI3305-20-EVAL1
ObsoleteVicor Corporation
EVAL BD PI3305-20
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI3305-20-EVAL1 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 8 A |
| Frequency - Switching | 1.5 MHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | PI3305-20 |
| Voltage - Input [Max] | 36 V |
| Voltage - Input [Min] | 20.4 V |
| Voltage - Output | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PI3305 Series
PI3305-20 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
