19413060232

Active

HARTING Technology Group

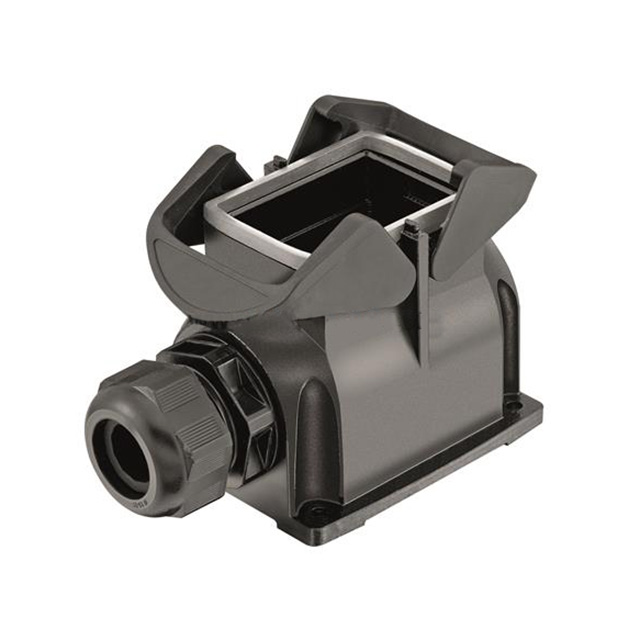

HAN-ECO MODULAR 6B SURFACE MOUNT HOUSING 1XM32 W/ GLAND - OUTDOOR (HOLDS CABLE 13-21MM)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-ECO MODULAR 6B SURFACE MOUNT HOUSING 1XM32 W/ GLAND - OUTDOOR (HOLDS CABLE 13-21MM)

Technical Specifications

Parameters and characteristics for this part

Specification	19413060232

Connector Type	Base - Box Mount
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Style	Side Entry
Thread Size	M32

Part	Ingress Protection	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Style	Housing Material	Connector Type	Lock Location	Size	Housing Color
HARTING Technology Group 19413060232	IP65 - Dust Tight Water Resistant	M32	125 °C	-40 °C	Side Entry	Polyamide (PA) Nylon Glass Filled	Base - Box Mount	Locking Clip (2) on Base Bottom	6B	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M32 6B IP65 - Dust Tight, Water Resistant
