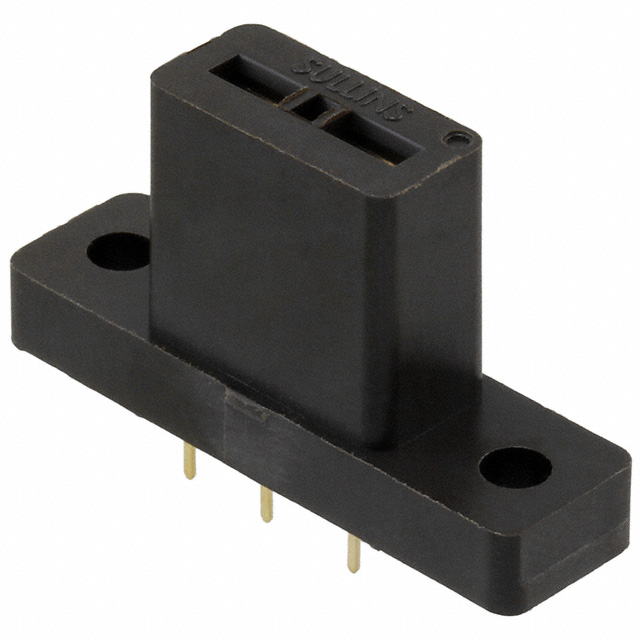

TDU03DTOD
ActiveSullins Connector Solutions
CONN SOCKET TRANSIST 3POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
TDU03DTOD
ActiveSullins Connector Solutions
CONN SOCKET TRANSIST 3POS GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TDU03DTOD |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 30 µin |
| Contact Finish Thickness - Post | 0.76 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Contact Resistance | 30 mOhm |
| Current Rating (Amps) | 5 A |
| Features | Board Guide, Flange |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 3 |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -55 °C |
| Termination | Solder |
| Termination Post Length | 3.3 mm |
| Termination Post Length | 0.13 in |
| Type | Transistor |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.39 | |
| 10 | $ 12.61 | |||
| 25 | $ 11.40 | |||
| 40 | $ 10.84 | |||
| 80 | $ 10.08 | |||
| 230 | $ 9.05 | |||
| 440 | $ 8.49 | |||
| 945 | $ 7.90 | |||
Description
General part information
TDU03 Series
3 (Rectangular) Pos Transistor Socket Gold Through Hole
