C45-4DC-24
ActiveOrion Fans
45 DEGREE, 4 HEADS, 24IN LEAD, 10A 125/250VAC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C45-4DC-24
ActiveOrion Fans
45 DEGREE, 4 HEADS, 24IN LEAD, 10A 125/250VAC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C45-4DC-24 |
|---|---|
| 1st Connector | Fan Terminal Receptacle 45° (4) |
| 2nd Connector | Open Wires |
| Approval Agency Marking | cURus, TUV |
| Cord Type | SPT-1 |
| Features | Daisy Chain |
| Length | 304.8 mm |
| Length [x] | 12 in |
| Number of Conductors | 2 |
| Style | Female Receptacle to Cable |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
C45-4D Series

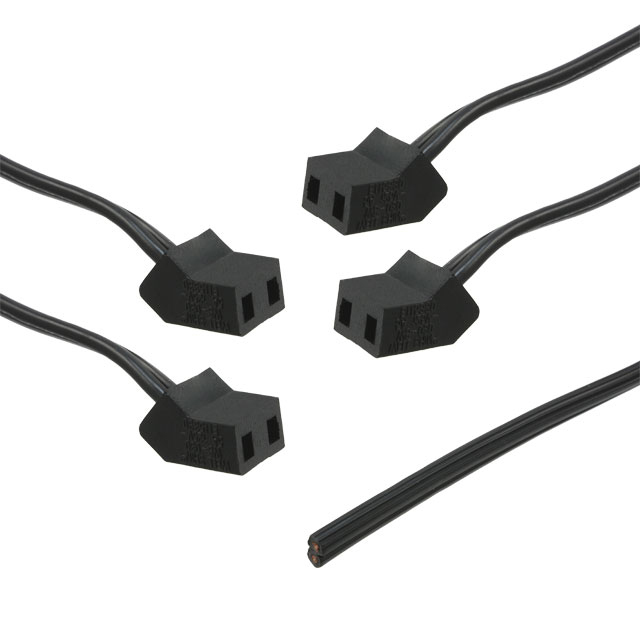

Fan Power Cord Fan Terminal Receptacle 45° (4) 12.0" (304.8mm) Open Wires
Documents
Technical documentation and resources
