B1232M12B6-BSR

Active

Mechatronics Bearing Group

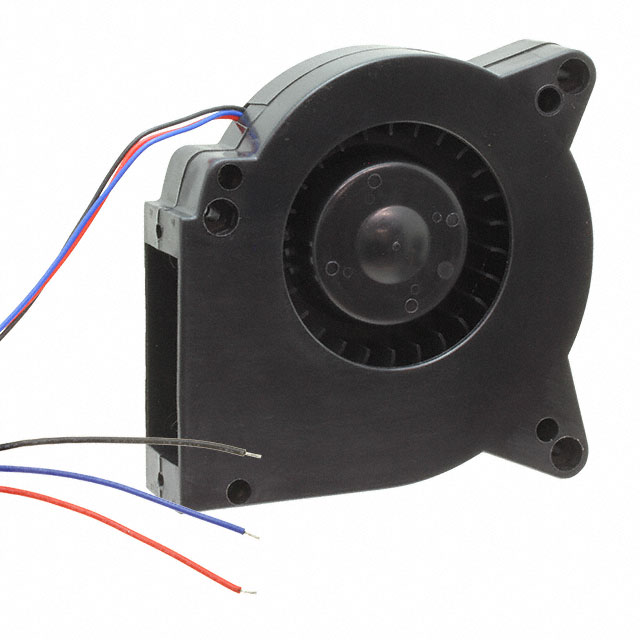

FAN BLOWER 120X32MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DC Lead Wire Specs +1

B1232M12B6-BSR

Active

Mechatronics Bearing Group

FAN BLOWER 120X32MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet DC Lead Wire Specs +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B1232M12B6-BSR

Air Flow	24 CFM
Air Flow	0.672 mł/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.55 A
Fan Type	Blower
Features	PWM Control, Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	46 dB(A)
RPM	2400 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	120 mm
Size / Dimension [z]	120 mm
Static Pressure	112.1 Pa
Static Pressure	0.45 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Weight	320.24 g
Weight	0.706 lb
Width [y]	32 mm

B1232 Series

Part	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Current Rating (Amps)	RPM	Approval Agency	Termination	Static Pressure	Static Pressure	Weight	Weight	Air Flow	Air Flow	Width [y]	Voltage - Rated	Fan Type	Features	Material - Blade	Bearing Type	Noise
Mechatronics Bearing Group B1232H12B1-BSR-CC	Square/Rounded	120 mm	120 mm	800 mA	2800 RPM	CE cUL TUV UL	3 Wire Leads	169.4 Pa	0.68 in H2O	319.78 g	0.705 lb	28 CFM	0.784 m³/min	32 mm	12 VDC	Blower	Conformal Coating Speed Sensor (Tach) Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Ball	49 dB
Mechatronics Bearing Group B1232H24B1-BSR-E-TTL-CC-IM4	Square/Rounded	120 mm	120 mm	480 mA	2800 RPM	CE cUL TUV UL	3 Wire Leads	169.4 Pa	0.68 in H2O	320.24 g	0.706 lb	28 CFM	0.784 m³/min	32 mm	24 VDC	Blower	Conformal Coating Speed Sensor (Tach) Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Ball	49 dB
Mechatronics Bearing Group B1232M24B-BSR-IM4	Square/Rounded	120 mm	120 mm	0.33 A	2400 RPM	CE cUL TUV UL	2 Wire Leads	112.1 Pa	0.45 in H2O	319.78 g	0.705 lb	24 CFM	0.672 mł/min	32 mm	24 VDC	Blower	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Ball	46 dB(A)
Mechatronics Bearing Group B1232H12B1-BSR	Square/Rounded	120 mm	120 mm	800 mA	2800 RPM	CE cUL TUV UL	3 Wire Leads	169.4 Pa	0.68 in H2O	319.78 g	0.705 lb	28 CFM	0.784 m³/min	32 mm	12 VDC	Blower	Speed Sensor (Tach) Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Ball	49 dB
Mechatronics Bearing Group B1232H12B2-BSR	Square/Rounded	120 mm	120 mm	800 mA	2800 RPM	CE cUL TUV UL	3 Wire Leads	169.4 Pa	0.68 in H2O	319.78 g	0.705 lb	28 CFM	0.784 m³/min	32 mm	12 VDC	Blower	Locked Rotor Sensor Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Ball	49 dB
Mechatronics Bearing Group B1232M12B6-BSR	Square/Rounded	120 mm	120 mm	0.55 A	2400 RPM	CE cUL TUV UL	3 Wire Leads	112.1 Pa	0.45 in H2O	320.24 g	0.706 lb	24 CFM	0.672 mł/min	32 mm	12 VDC	Blower	PWM Control Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Ball	46 dB(A)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 18.88

Description

General part information

B1232 Series

Fan Blower 12VDC Square/Rounded - 120mm L x 120mm H Ball 24.0 CFM (0.672m³/min) 3 Wire Leads
