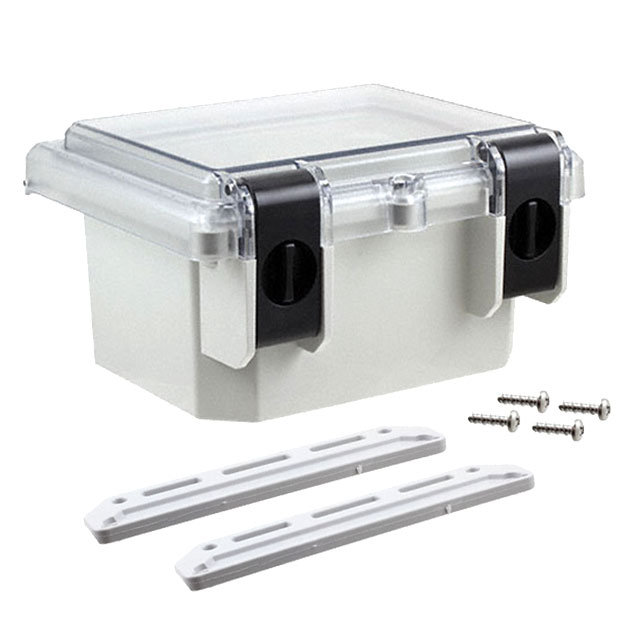

I152HLCG

Active

Serpac

BOX PLAS CLR/GRAY 9.7X8.2X5.5IN

Search across all available documentation for this part.

Active

Serpac

BOX PLAS CLR/GRAY 9.7X8.2X5.5IN

Technical Specifications

Parameters and characteristics for this part

Specification	I152HLCG

Area (L x W)	289 in²
Area (L x W)	1863 cm²
Color	Clear, Gray
Container Type	Enclosure
Design	Cover Included
Height [z]	138.68 mm
Height [z]	5.46 in
Material	Metal, Aluminum
Material Flammability Rating	UL94 V-2
Ratings	IP67, NEMA 4
Size / Dimension [x]	9.71 in
Size / Dimension [x]	246.63 mm
Size / Dimension [y]	8.23 in
Size / Dimension [y]	209.04 mm

Part	Color	Material	Material Flammability Rating	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Design	Ratings	Area (L x W)	Area (L x W)
Serpac I152HLGG	Gray	Aluminum Metal	UL94 V-2	138.68 mm	5.46 in	9.71 in	8.23 in	209.04 mm	246.63 mm	Enclosure	Cover Included	IP67 NEMA 4	289 in²	1863 cm²
Serpac I152HLCG	Clear Gray	Aluminum Metal	UL94 V-2	138.68 mm	5.46 in	9.71 in	8.23 in	209.04 mm	246.63 mm	Enclosure	Cover Included	IP67 NEMA 4	289 in²	1863 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosure Metal, Aluminum Clear, Gray Cover Included 9.710" L x 8.230" W (246.63mm x 209.04mm) X 5.460" (138.68mm)

Technical documentation and resources

No documents available
