BU-P5167-2

Active

Mueller Electric Co

BANANA TEST CONNECTOR, JACK, CABLE MOUNT, 15 A, 5 KV, NICKEL PLATED CONTACTS, RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BU-P5167-2

Active

Mueller Electric Co

BANANA TEST CONNECTOR, JACK, CABLE MOUNT, 15 A, 5 KV, NICKEL PLATED CONTACTS, RED

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P5167-2

Body Material	Polyvinyl Chloride (PVC)
Color	Red
Contact Finish	Nickel
Contact Material	Brass
Gender	Female
Insulation	Fully Insulated
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-70 °C
Plug/Mating Plug Diameter	Standard Banana
Termination	Crimp or Solder
Type	Banana Jack
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

BU-P5167 Series

Part	Mounting Type	Color	Contact Finish	Plug/Mating Plug Diameter	Type	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Body Material	Gender	Insulation
Mueller Electric Co BU-P5167-0	Free Hanging (In-Line)	Black	Nickel	Standard Banana	Banana Jack	22 AWG	17.5 AWG	Crimp or Solder	50 °C	-70 °C	Brass	Polyvinyl Chloride (PVC)	Female	Fully Insulated
Mueller Electric Co BU-P5167-2	Free Hanging (In-Line)	Red	Nickel	Standard Banana	Banana Jack	22 AWG	17.5 AWG	Crimp or Solder	50 °C	-70 °C	Brass	Polyvinyl Chloride (PVC)	Female	Fully Insulated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.04
		10	$ 1.70
		100	$ 1.61
		500	$ 1.56
		1000	$ 1.48
Newark	Each	500	$ 1.96
		1000	$ 1.80
		2500	$ 1.65

Description

General part information

BU-P5167 Series

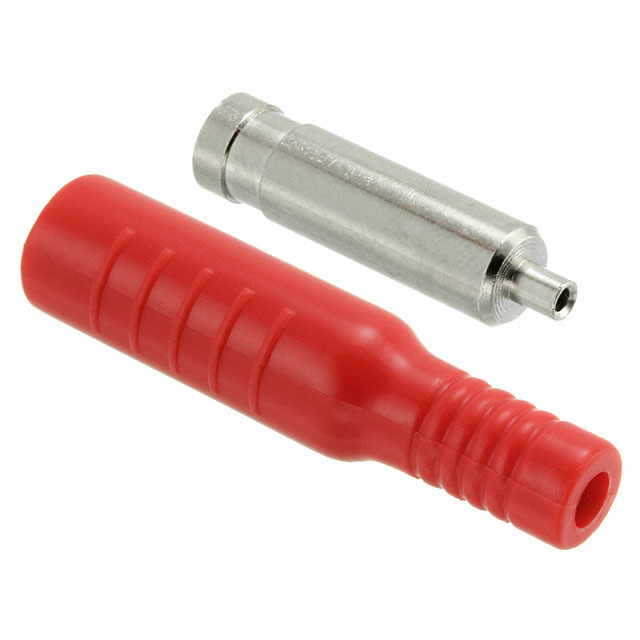

The BU-P5167-2 is a 15A red cable-mount In-Line Banana Jack made of nickel-plated brass body with contacts and a flexible PVC insulator. It is suitable for use with the 18, 20 and 22AWG wires that can be soldered or crimped.
