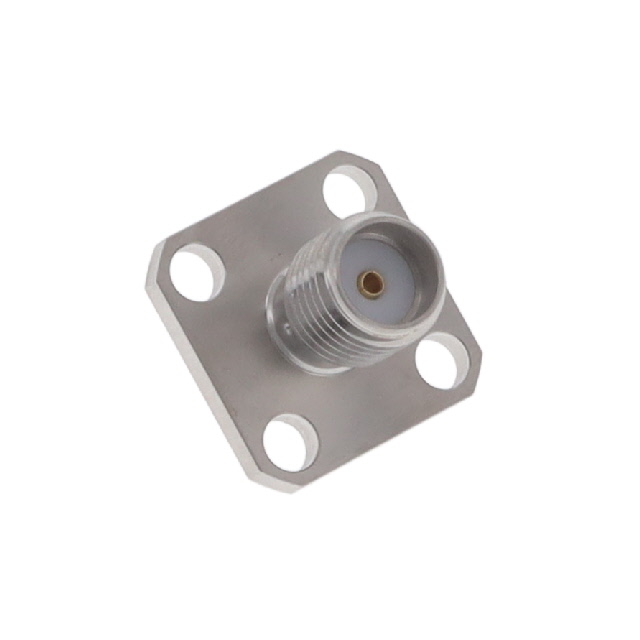

CONN SMA 0HZ TO 18GHZ 50OHM ST FLANGE MOUNT RCP GOLD OVER NICKEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R125512001W

Active

Radiall USA, Inc.

CONN SMA 0HZ TO 18GHZ 50OHM ST FLANGE MOUNT RCP GOLD OVER NICKEL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R125512001W

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

R12551 Series

Part	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Body Finish	Mating Cycles	Contact Termination	Mounting Type	Frequency - Max [Max]	Center Contact Material	Center Contact Plating	Connector Type	Voltage Rating	Impedance	Body Material	Features	Mounting Feature	Connector Style	Dielectric Material	Housing Color
Radiall USA, Inc. R125513000	1	-65 ░C	165 °C	Solder	Gold	500	Solder	Panel Mount Through Hole	18 GHz	Beryllium Copper	Gold	Female Socket Jack	500 V	50 Ohms	Stainless Steel	Extended Insulation	Flange	SMA	Polytetrafluoroethylene (PTFE)	Gold
Radiall USA, Inc. R125512000W	1	-65 ░C	165 °C	Solder	Gold	500	Solder		18 GHz		Gold	Female Socket Jack	500 V	50 Ohms	Stainless Steel	Extended Insulation	Flange	SMA	Polytetrafluoroethylene (PTFE)	Gold
Radiall USA, Inc. R125512000	1	-65 ░C	165 °C	Solder	Gold	500	Solder		18 GHz		Gold	Female Socket Jack	500 V	50 Ohms	Stainless Steel	Extended Insulation	Flange	SMA	Polytetrafluoroethylene (PTFE)	Gold
Radiall USA, Inc. R125510501	1	-65 ░C	165 °C	Solder		500	Solder Tab	Panel Mount Through Hole	18 GHz	Beryllium Copper	Gold	Female Socket Receptacle	600 V	50 Ohms	Stainless Steel		Flange	SMA	Polytetrafluoroethylene (PTFE)	Silver
Radiall USA, Inc. R125510001	1	-65 ░C	165 °C	Solder		500	Solder Tab	Panel Mount Through Hole	18 GHz	Beryllium Copper	Gold	Female Socket Jack	500 V	50 Ohms	Stainless Steel	Extended Insulation	Flange	SMA	Polytetrafluoroethylene (PTFE)	Silver
Radiall USA, Inc. R125510201
Radiall USA, Inc. R125512001	1	-65 ░C	165 °C	Solder		500	Solder		18 GHz	Beryllium Copper	Gold	Female Socket Jack	500 V	50 Ohms	Stainless Steel	Extended Insulation	Flange	SMA	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R125512001W	1	-65 ░C	165 °C	Solder		500	Solder		18 GHz	Beryllium Copper	Gold	Female Socket Jack	250 VDC	50 Ohms	Stainless Steel	Extended Insulation	Flange	SMA	Polytetrafluoroethylene (PTFE)	Silver
Radiall USA, Inc. R125510000W	1	-65 ░C	165 °C	Solder	Gold	500	Solder Tab	Panel Mount Through Hole	18 GHz	Beryllium Copper	Gold	Female Socket Jack	500 V	50 Ohms	Stainless Steel		Flange	SMA	Polytetrafluoroethylene (PTFE)	Gold
Radiall USA, Inc. R125513000W	1	-65 ░C	165 °C	Solder	Gold	500	Solder	Panel Mount Through Hole	18 GHz	Beryllium Copper	Gold	Female Socket Jack	500 V	50 Ohms	Stainless Steel	Extended Insulation	Flange	SMA	Polytetrafluoroethylene (PTFE)	Gold
