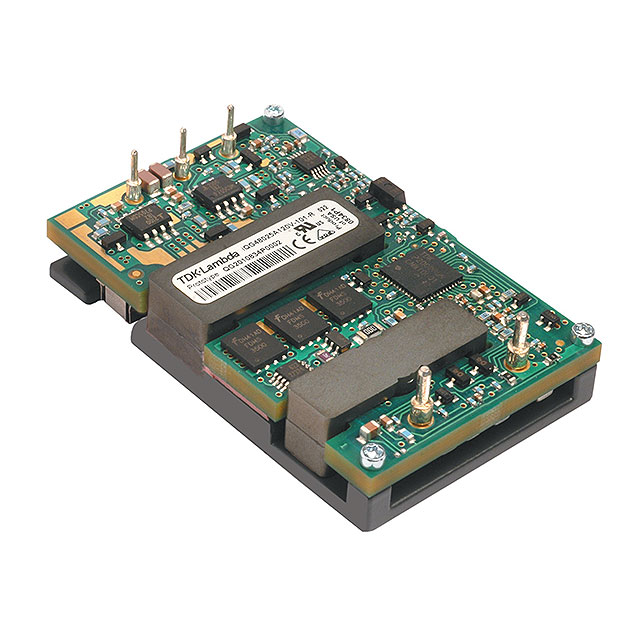

IQG48042A120V-1U9-R - IQG SERIES

IQG48042A120V-1U9-R

Active
TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, 2:1, 504 W, 1 OUTPUT, 12 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
IQG48042A120V-1U9-R - IQG SERIES

IQG48042A120V-1U9-R

Active
TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, 2:1, 504 W, 1 OUTPUT, 12 V

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationIQG48042A120V-1U9-R
ApplicationsITE (Commercial)
Current - Output (Max) [Max]42 A
Efficiency95 %
FeaturesOCP, SCP
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / Case1/4 Brick, 8-DIP Module
Power (Watts)504 W
Size / Dimension [x]57.9 mm
Size / Dimension [x]2.28 in
Size / Dimension [y]1.45 in
Size / Dimension [y]36.8 mm
Size / Dimension [z]13.2 mm
Size / Dimension [z]0.52 "
TypeIntermediate Bus Converter
Voltage - Input (Max) [Max]75 V
Voltage - Input (Min) [Min]36 V
Voltage - Isolation1.5 kV
Voltage - Output 112 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 118.49
5$ 111.71
10$ 108.91
25$ 105.31
40$ 103.51
80$ 100.92
NewarkEach 1$ 99.36

Description

General part information

IQG48042 Series

Intermediate Bus Converter DC DC Converter 1 Output 12V 42A 36V - 75V Input
