Q-3503O000R.75M

Active

Amphenol Custom Cable

COAX CBL SMA TO SMB 29.5"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO SMB 29.5"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3503O000R.75M

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316 DS
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	SMA to SMB

Part	1st Connector	Cable Impedance	1st Contact Gender	Connector Impedance	1st Connector Mounting Type	Cable Type	Style	2nd Connector Mounting Feature	2nd Connector	2nd Connector Mounting Type	Frequency - Max [Max]	Features	Length	Length	Overall Impedance	Color	2nd Contact Gender
Amphenol Custom Cable Q-3503O000R006I	Right Angle SMA Plug	50 Ohms	Male	50 Ohms	Free Hanging (In-Line)	RG-316 DS	SMA to SMB	Bulkhead - Front Side Nut	SMB Jack	Panel Mount	3 GHz	Shielded	152.4 mm	6 in	50 Ohms	Copper	Male
Amphenol Custom Cable Q-3503O000R.75M	Right Angle SMA Plug	50 Ohms	Male	50 Ohms	Free Hanging (In-Line)	RG-316 DS	SMA to SMB	Bulkhead - Front Side Nut	SMB Jack	Panel Mount	3 GHz	Shielded	750 mm	29.53 "	50 Ohms	Copper	Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

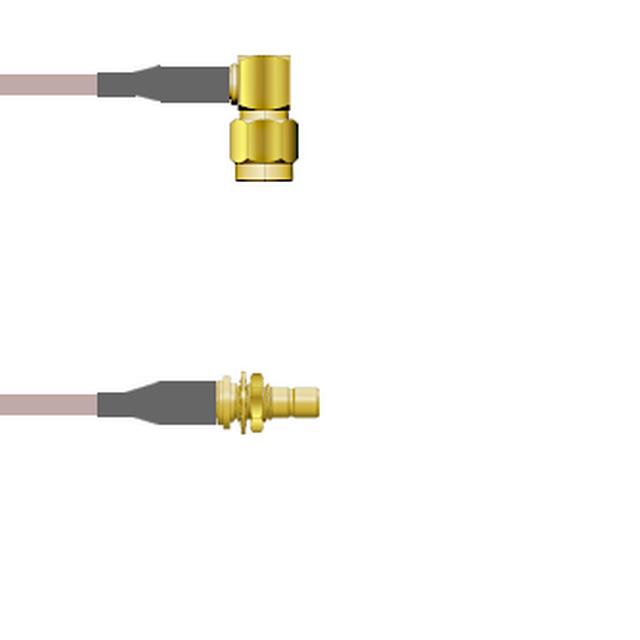

Cable Assembly Coaxial SMA to SMB RG-316 DS 29.53" (750.00mm)
