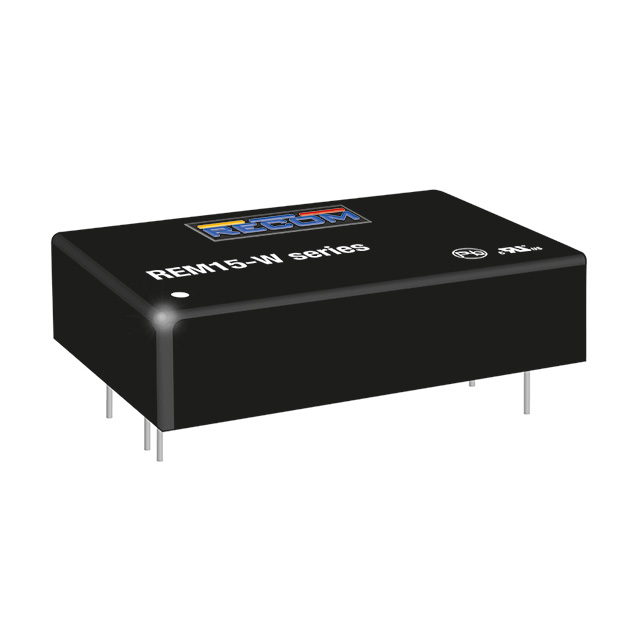

REM15-4812SW/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 15W 18-75VIN 12VOUT 1.25A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

REM15-4812SW/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 15W 18-75VIN 12VOUT 1.25A

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REM15-4812SW/P

Applications	ITE (Commercial), Medical
Current - Output (Max) [Max]	1.25 A
Efficiency	88 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	15 W
Size / Dimension [x]	40.6 mm
Size / Dimension [x]	1.6 "
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	5000 V
Voltage - Output 1	12 V

REM15-4824 Series

Isolated DC/DC Converters - SMD 15W 9-36Vin 12Vout 1.25A

Part	Package / Case	Package / Case	Voltage - Input (Min) [Min]	Mounting Type	Power (Watts)	Applications	Voltage - Isolation	Voltage - Input (Max) [Max]	Features	Current - Output (Max)	Current - Output (Max)	Efficiency	Number of Outputs	Voltage - Output 2	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Current - Output (Max)
RECOM Power REM15-4805DW	5 Leads	6-DIP Module	18 V	Through Hole	15 W	ITE (Commercial) Medical	5000 V	75 V	OCP OTP OVP SCP UVLO	1.5 A	1.5 A	86 %	2	-5 V	5 V	-40 °C	105 C	Isolated Module	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "
RECOM Power REM15-2405DW/P		6-DIP Module	9 V	Through Hole	15 W	ITE (Commercial) Medical	5000 V	36 V	OCP OTP OVP Remote On/Off SCP UVLO	1.5 A	1.5 A	86 %	2	-5 V	5 V	-40 °C	105 C	Isolated Module	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "
RECOM Power REM15-4812SW/P		6-DIP Module	18 V	Through Hole	15 W	ITE (Commercial) Medical	5000 V	75 V	OCP OTP OVP Remote On/Off SCP UVLO			88 %	1		12 V	-40 °C	105 C	Isolated Module	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	1.25 A
RECOM Power REM15-2415DW	5 Leads	6-DIP Module	9 V	Through Hole	15 W	ITE (Commercial) Medical	5000 V	36 V	OCP OTP OVP SCP UVLO	500 mA		88 %	2	-15 V	15 V	-40 °C	105 C	Isolated Module	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "		500 mA
RECOM Power REM15-2405DW	5 Leads	6-DIP Module	9 V	Through Hole	15 W	ITE (Commercial) Medical	5000 V	36 V	OCP OTP OVP SCP UVLO	1.5 A	1.5 A	86 %	2	-5 V	5 V	-40 °C	105 C	Isolated Module	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "
RECOM Power REM15-4812DW	5 Leads	6-DIP Module	18 V	Through Hole	15 W	ITE (Commercial) Medical	5000 V	75 V	OCP OTP OVP SCP UVLO	625 mA	625 mA	88.5 %	2	-12 V	12 V	-40 °C	105 C	Isolated Module	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "
RECOM Power REM15-4824SW/P		6-DIP Module	18 V	Through Hole	15 W	ITE (Commercial) Medical	5000 V	75 V	OCP OTP OVP Remote On/Off SCP UVLO			88.5 %	1		24 V	-40 °C	105 C	Isolated Module	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	625 mA
RECOM Power REM15-4805SW	5 Leads	6-DIP Module	18 V	Through Hole	15 W	ITE (Commercial) Medical	5000 V	75 V	OCP OTP OVP SCP UVLO				1		5 V	-40 °C	105 C	Isolated Module	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	3 A
RECOM Power REM15-4815DW/P		6-DIP Module	18 V	Through Hole	15 W	ITE (Commercial) Medical	5000 V	75 V	OCP OTP OVP Remote On/Off SCP UVLO	500 mA		88 %	2	-15 V	15 V	-40 °C	105 C	Isolated Module	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "		500 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 80.91
Sager	N/A	1	$ 86.14
		5	$ 80.74
		10	$ 75.98
		25	$ 70.79
		50	$ 67.99
		100	$ 66.25
		250	$ 63.02

Description

General part information

REM15-4824 Series

Isolated DC/DC Converters - SMD 15W 9-36Vin 12Vout 1.25A

Documents

Technical documentation and resources

Datasheet

Document
