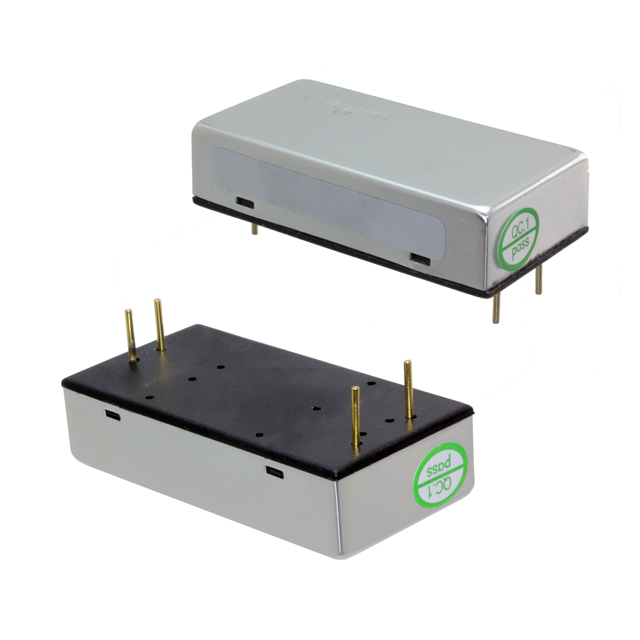

VG15-24S250

Active

Volgen + Furuno

DC DC CONVERTER 250V 15W

Search across all available documentation for this part.

Active

Volgen + Furuno

DC DC CONVERTER 250V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	VG15-24S250

Applications	ITE (Commercial)
Current - Output (Max) [Max]	60 mA
Features	SCP, OCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	4-DIP Module
Power (Watts)	15 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	12.7 mm
Supplier Device Package	4-DIP
Type	High Voltage - Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	250 V

Part	Supplier Device Package	Type	Package / Case	Mounting Type	Current - Output (Max) [Max]	Applications	Voltage - Isolation	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Number of Outputs	Power (Watts)	Voltage - Output 1
Volgen + Furuno VG15-24S250	4-DIP	High Voltage - Isolated Module	4-DIP Module	Through Hole	60 mA	ITE (Commercial)	1.5 kV	18 V	-25 °C	70 °C	OCP OVP SCP	12.7 mm	25.4 mm	50.8 mm	50.8 mm	25.4 mm	12.7 mm	36 V	1	15 W	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High Voltage - Isolated Module DC DC Converter 1 Output 250V 60mA 18V - 36V Input

Technical documentation and resources

No documents available
