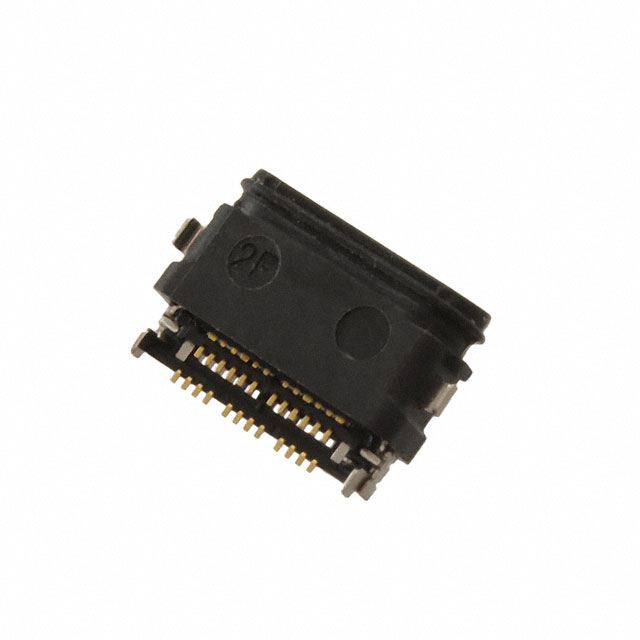

124018312112A
ActiveAmphenol ICC (Commercial Products)
USB TYPE C, RECEPTACLE, MIDDLE M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
124018312112A
ActiveAmphenol ICC (Commercial Products)
USB TYPE C, RECEPTACLE, MIDDLE M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 124018312112A |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Gender | Receptacle |
| Ingress Protection | IPX8 - Waterproof |
| Insulation Color | Black |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Board Edge, Cutout, Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Stainless, Steel |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.09 | |
| 10 | $ 2.63 | |||
| 25 | $ 2.46 | |||
| 50 | $ 2.34 | |||
| 100 | $ 2.23 | |||
| 250 | $ 2.09 | |||
| Digi-Reel® | 1 | $ 3.09 | ||
| 10 | $ 2.63 | |||
| 25 | $ 2.46 | |||
| 50 | $ 2.34 | |||
| 100 | $ 2.23 | |||
| 250 | $ 2.09 | |||
| Tape & Reel (TR) | 800 | $ 1.19 | ||
| 1600 | $ 1.13 | |||
| 2400 | $ 1.10 | |||
| 4000 | $ 1.06 | |||
| 5600 | $ 1.04 | |||
| 8000 | $ 1.01 | |||
Description
General part information
12401831 Series
USB-C (USB TYPE-C) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
