M7SXK-3710R

Active

3M (TC)

D-SUB CABLE - MFM37K/MC37M/X

Search across all available documentation for this part.

Active

3M (TC)

D-SUB CABLE - MFM37K/MC37M/X

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Number of Positions	Contact Finish	Color	Length	Length	Contact Finish Thickness	Contact Finish Thickness	1st Connector	2nd Connector	Type
3M (TC) M7SXK-1510R	Unshielded	15	Gold	Multiple Ribbon	10 ft	3.05 m	0.76 Ám	30 Áin	Female Sockets Receptacle	Individual Wire Leads	DB15
3M (TC) M7SXK-3710J	Unshielded	37	Gold		10 ft	3.05 m	0.76 Ám	30 Áin	Female Sockets Receptacle	Individual Wire Leads	DB37
3M (TC) M7SXK-0910J	Unshielded	9	Gold		10 ft	3.05 m	0.76 Ám	30 Áin	Female Sockets Receptacle	Individual Wire Leads	DB9
3M (TC) M7SXK-2506R	Unshielded		Gold	Multiple Ribbon	6 ft	1.83 m	0.76 Ám	30 Áin	Female Sockets Receptacle	Individual Wire Leads	DB25
3M (TC) M7SXK-3710R	Unshielded	37	Gold	Multiple Ribbon	10 ft	3.05 m	0.76 Ám	30 Áin	Female Sockets Receptacle	Individual Wire Leads	DB37
3M (TC) M7SXK-2506J	Unshielded		Gold		6 ft	1.83 m	0.76 Ám	30 Áin	Female Sockets Receptacle	Individual Wire Leads	DB25
3M (TC) M7SXK-0906J	Unshielded	9	Gold		6 ft	1.83 m	0.76 Ám	30 Áin	Female Sockets Receptacle	Individual Wire Leads	DB9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

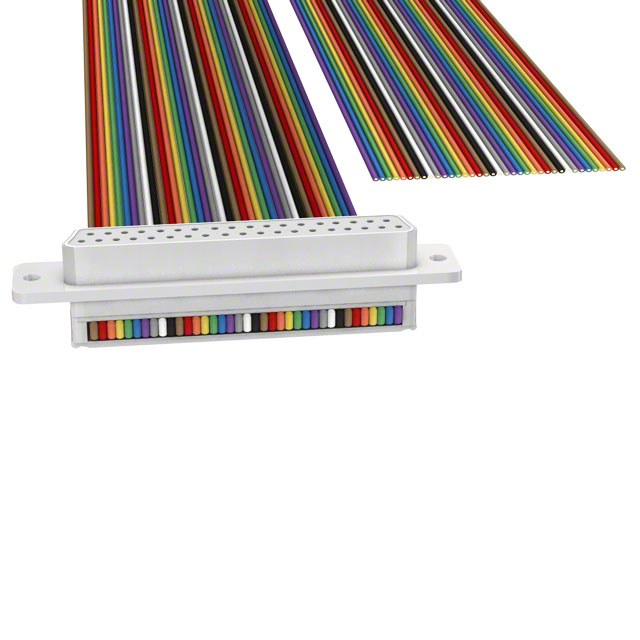

D-Sub Cable Assembly DB37 Multiple, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Individual Wire Leads Unshielded

Technical documentation and resources
