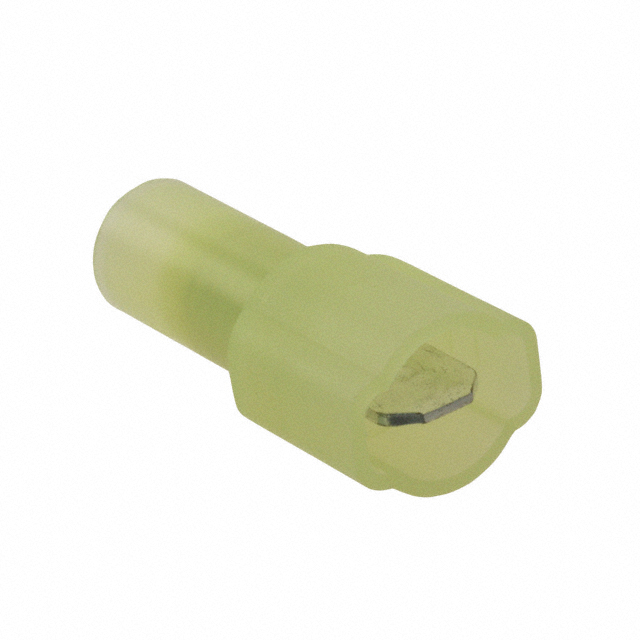

MNU10-250DMIX-BOTTLE
Active3M (TC)
CONN QC TAB 10-12AWG 0.250 50PC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MNU10-250DMIX-BOTTLE
Active3M (TC)
CONN QC TAB 10-12AWG 0.250 50PC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MNU10-250DMIX-BOTTLE |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | ETP, Copper |
| Features | Butted Seam |
| Gender | Male |
| Insulation | Fully Insulated |
| Insulation Diameter | 0.25 " |
| Insulation Diameter | 6.35 mm |
| Length - Overall | 26.67 mm |
| Length - Overall [x] | 1.05 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 12 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 2.22 | |
Description
General part information
MNU10 Series
0.250" (6.35mm) Quick Connect Male 10-12 AWG Crimp Connector Fully Insulated
