P70-1100045R - P70-1100045R

P70-1100045R

Active
Harwin Inc.

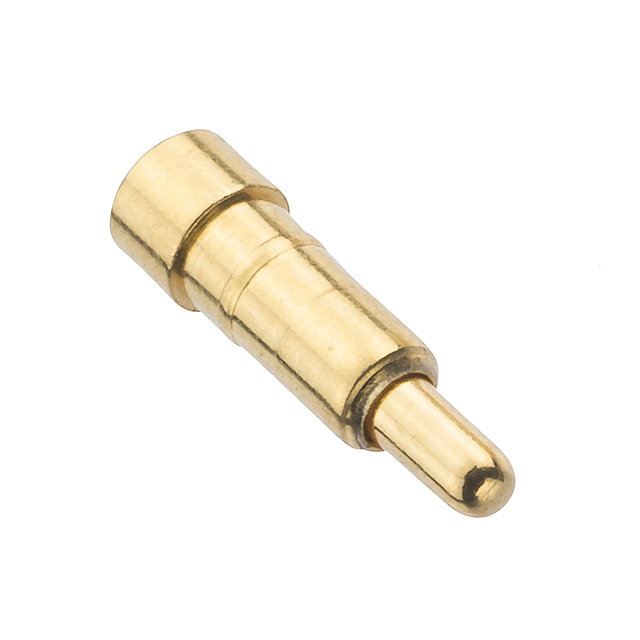

SPRING LOADED CONTACT, PIN, 6.3MM, SMT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsP20-0345RP1113CV3+3
P70-1100045R - P70-1100045R

P70-1100045R

Active
Harwin Inc.

SPRING LOADED CONTACT, PIN, 6.3MM, SMT

Deep-Dive with AI

DocumentsP20-0345RP1113CV3+3

Technical Specifications

Parameters and characteristics for this part

SpecificationP70-1100045R
Contact FinishGold
Contact Finish Thickness16 µin
Contact Finish Thickness0.41 µm
Contact MaterialBrass
Contact TypeSleeve & Plunger (Pogo Pins)
Current Rating (Amps)2 A
Mating Cycles10000
Maximum Working Height [Max]5.3 mm
Maximum Working Height [Max]0.209 in
Minimum Working Height4.7 mm
Minimum Working Height [Min]0.185 in
Mounting TypeSurface Mount
Operating Force - Mid Compression124.41 gf
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Pad Layout Dimension [diameter]2 mm
Pad Layout Dimension [diameter]0.079 in
Plunger Size [diameter]0.035 in
Plunger Size [diameter]0.9 mm
Recommended Working Height5 mm
Recommended Working Height [z]0.197 in
