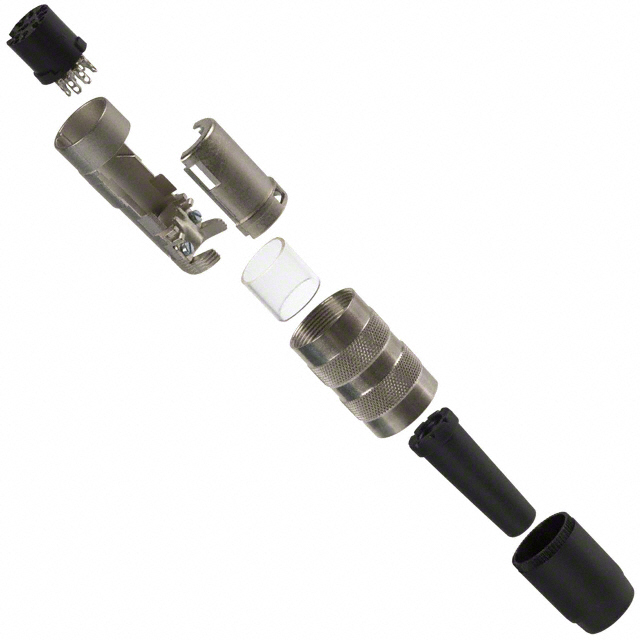

T3505001U

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 8P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet C091 A,B,D Series Catalog

T3505001U

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 8P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet C091 A,B,D Series Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T3505001U

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	7 A
Features	Strain Relief
Ingress Protection	IP40
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-8
Shielding	Shielded
Voltage Rating	250 VDC

T350 Series

Part	Shielding	Voltage Rating	Contact Finish - Mating	Shell Material	Shell Finish	Orientation	Ingress Protection	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Color	Mounting Type	Number of Positions	Shell Size - Insert	Features	Primary Material	Mounting Feature	Note	Housing Color	Insert Material	Material Flammability Rating	Type	Contact Size	Contact Type	Contact Shape	Termination
Amphenol Tuchel Industrial T3504005U	Shielded	250 VDC	Silver	Die Cast	Nickel	Keyed	IP40	7 A	100 °C	-40 °C	Male Pins Plug	Silver	Free Hanging (In-Line) Right Angle	8	M16-8	Strain Relief	Metal
Amphenol Tuchel Industrial T3504001U	Shielded	250 VDC	Silver	Die Cast	Nickel	Keyed	IP40	7 A	100 °C	-40 °C	Male Pins Plug	Silver	Free Hanging (In-Line)	8	M16-8	Strain Relief	Metal
Amphenol Tuchel Industrial T3506009U	Shielded	250 VDC	Silver	Die Cast	Nickel	Keyed	IP40	7 A	100 °C	-40 °C	Male Pins Receptacle	Silver		8	M16-8		Metal	Bulkhead - Rear Side Nut
Amphenol Tuchel Industrial T3504552U	Shielded			Die Cast	Nickel	Keyed	IP40		100 °C	-40 °C	Plug Housing		Free Hanging (In-Line)	8	M16-8	Backshell Cable Clamp Coupling Nut			Contacts Not Included	Black Silver	Thermoplastic	UL94 V-0	For Male Pins	1.5 mm	Crimp	Circular
Amphenol Tuchel Industrial T3507900U	Shielded	250 VDC	Silver	Die Cast	Nickel	Keyed	IP40	7 A	100 °C	-40 °C	Receptacle Female Sockets	Silver	Panel Mount Right Angle Through Hole	8	M16-8		Metal										Solder
Amphenol Tuchel Industrial T3507400U	Shielded	250 VDC	Silver	Die Cast	Nickel	Keyed	IP40	7 A	100 °C	-40 °C	Receptacle Female Sockets	Silver	Panel Mount Through Hole	8	M16-8		Metal										Solder
Amphenol Tuchel Industrial T3505001U	Shielded	250 VDC	Silver	Die Cast	Nickel	Keyed	IP40	7 A	100 °C	-40 °C	Female Sockets Plug	Silver	Free Hanging (In-Line)	8	M16-8	Strain Relief	Metal
Amphenol Tuchel Industrial T3507100U	Shielded	250 VDC	Silver	Die Cast	Nickel	Keyed	IP40	7 A	100 °C	-40 °C	Receptacle Female Sockets	Silver		8	M16-8		Metal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.65
		10	$ 15.29
		25	$ 14.50
		50	$ 14.29
		200	$ 12.60
		400	$ 11.76
		600	$ 11.51

Description

General part information

T350 Series

8 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

C091 A,B,D Series Catalog

Datasheet
