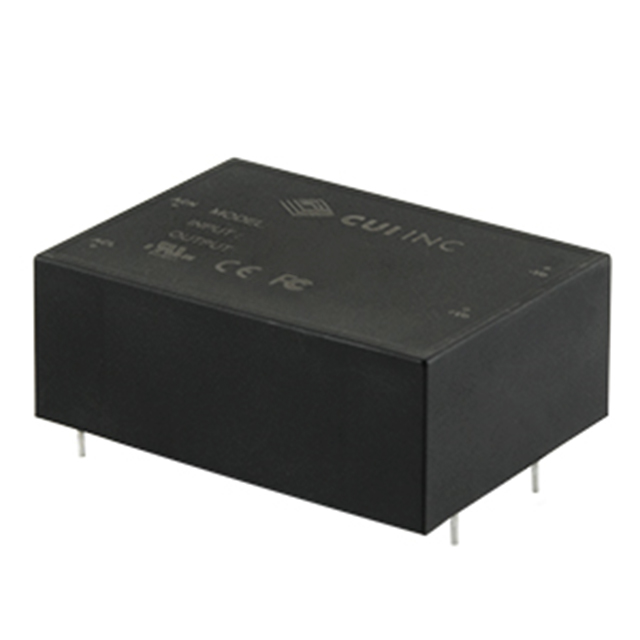

PSK-15B-S12

Active

CUI Inc.

AC/DC CONVERTER 12V 15W

Search across all available documentation for this part.

Active

CUI Inc.

AC/DC CONVERTER 12V 15W

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Standard Number	Type	Number of Outputs	Power (Watts)	Package / Case	Load Regulation	Voltage - Output 1	Applications	Line Regulation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Output (Max) [Max]	Features	Current - Output (Max)	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]
CUI Inc. PSK-15B-S48	CB Scheme EN FCC IEC UL	0.91 in	1.77 "	2.44 in	62 mm	23.1 mm	45 mm	60950-1 61000-3-2 61000-3-3 62368-1	Enclosed	1	15 W	4-DIP Module	1 %	48 V	ITE (Commercial)	0.5 %	-25 °C	70 °C	Through Hole	320 mA	Universal Input
CUI Inc. PSK-15B-S5	CB Scheme EN FCC IEC UL	0.91 in	1.77 "	2.44 in	62 mm	23.1 mm	45 mm	60950-1 61000-3-2 61000-3-3 62368-1	Enclosed	1	15 W	4-DIP Module	1 %	5 V	ITE (Commercial)	0.5 %	-25 °C	70 °C	Through Hole		Universal Input	2.8 A	81.37 %
CUI Inc. PSK-15B-S12	CB Scheme EN FCC IEC UL	0.91 in	1.77 "	2.44 in	62 mm	23.1 mm	45 mm	60950-1 61000-3-2 61000-3-3 62368-1	Enclosed	1	15 W	4-DIP Module	1 %	12 V	ITE (Commercial)	0.5 %	-25 °C	70 °C	Through Hole	1.25 A	Universal Input		84.5 %	85 VAC 120 VDC	264 VAC 370 VDC
CUI Inc. PSK-15B-S15	CB Scheme EN FCC IEC UL	0.91 in	1.77 "	2.44 in	62 mm	23.1 mm	45 mm	60950-1 61000-3-2 61000-3-3 62368-1	Enclosed	1	15 W	4-DIP Module	1 %	15 V	ITE (Commercial)	0.5 %	-25 °C	70 °C	Through Hole	1 A	Universal Input		84.5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 1.25A 85 ~ 264 VAC, 120 ~ 370 VDC Input
