H3WWH-2006G

Active

Assmann WSW Components

IDC CBL - HHPL20H/AE20G/HHPL20H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHPL20H/AE20G/HHPL20H

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Pitch - Connector	Pitch - Connector	Color	Number of Positions	Contact Finish	Shielding	Pitch - Cable	Pitch - Cable	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length	Cable Termination	Length [x]	Length [x]
Assmann WSW Components H3WWH-2006M	2	0.1 in	2.54 mm	Multiple Ribbon	20	Gold	Unshielded	0.05 "	1.27 mm	Flange Polarizing Key	Plug to Plug	15 µin	0.38 µm	152.4 mm	6 "	0.5 '	IDC
Assmann WSW Components H3WWH-2036M	2	0.1 in	2.54 mm	Multiple Ribbon	20	Gold	Unshielded	0.05 "	1.27 mm	Flange Polarizing Key	Plug to Plug	15 µin	0.38 µm				IDC	3 ft	914.4 mm
Assmann WSW Components H3WWH-2006G	2	0.1 in	2.54 mm		20	Gold	Unshielded	0.05 "	1.27 mm	Flange Polarizing Key	Plug to Plug	15 µin	0.38 µm	152.4 mm	6 "	0.5 '	IDC
Assmann WSW Components H3WWH-2018M	2	0.1 in	2.54 mm	Multiple Ribbon	20	Gold	Unshielded	0.05 "	1.27 mm	Flange Polarizing Key	Plug to Plug	15 µin	0.38 µm				IDC	1.5 ft	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

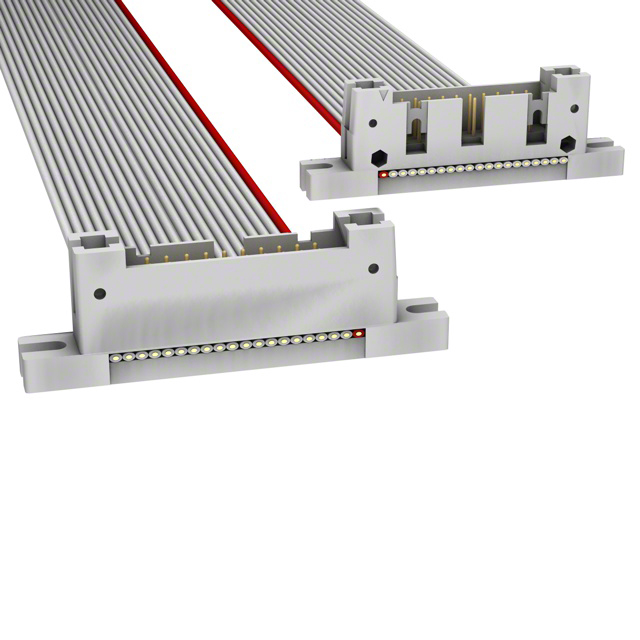

20 Position Cable Assembly Rectangular Plug to Plug 0.500' (152.40mm, 6.00")
