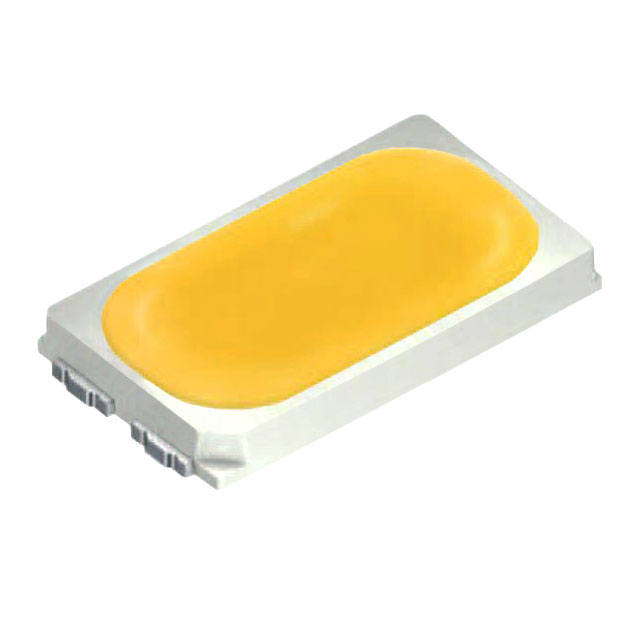

GW JDSTS2.EM-H4H7-XX52-1-65-C-R18

Unknown

ams-OSRAM USA INC.

LED DURIS E5 COOL WHT 5700K 5630

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GW JDSTS2.EM-H4H7-XX52-1-65-C-R18

Unknown

ams-OSRAM USA INC.

LED DURIS E5 COOL WHT 5700K 5630

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GW JDSTS2.EM-H4H7-XX52-1-65-C-R18

CCT (K)	5700 K
Color	Cool, White
CRI (Color Rendering Index)	80
Current - Max [Max]	180 mA
Current - Test	65 mA
Flux @ 25°C, Current - Test	36 lm
Flux @ 25°C, Current - Test [Max]	39 lm
Flux @ 25°C, Current - Test [Min]	33 lm
Height - Seated (Max) [Max] [z]	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in
Lumens/Watt @ Current - Test	193 lm/W
Mounting Type	Surface Mount
Package / Case	4-SMD, Flat Leads
Size / Dimension [x]	5.3 mm
Size / Dimension [x]	0.209 "
Size / Dimension [y]	0.118 in
Size / Dimension [y]	3 mm
Thermal Resistance of Package [diameter]	41.78 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.87 V

GW JDSTS2.EM Series

...

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lumens/Watt @ Current - Test	Color	Thermal Resistance of Package [diameter]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Current - Test	Viewing Angle	CRI (Color Rendering Index)	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	CCT (K)	Thermal Resistance of Package	Supplier Device Package
ams-OSRAM USA INC. GW JDSTS2.EM-H4H7-XX52-1-65-C-R18	0.118 in	5.3 mm	0.209 "	3 mm	193 lm/W	Cool White	41.78 °C/W	36 lm	39 lm	33 lm	180 mA	2.87 V	65 mA	120 °	80	4-SMD Flat Leads	0.6 mm	0.024 in	Surface Mount	5700 K
ams-OSRAM USA INC. GW JDSTS2.EM-H5H8-A131-1-65-B-2-R33	0.118 in	5.3 mm	0.209 "	3 mm	206 lm/W	Cool White		38 lm			180 mA	2.84 V	65 mA	120 °	80	4-SMD Flat Leads	0.6 mm	0.024 in	Surface Mount	6500 K	16 °C/W	4-SMD
ams-OSRAM USA INC. GW JDSTS2.EM-H3H6-XX53-1-65-C-R33	0.118 in	5.3 mm	0.209 "	3 mm	187 lm/W	Cool White	41.78 °C/W	35 lm			180 mA	2.87 V	65 mA	120 °	80	4-SMD Flat Leads	0.6 mm	0.024 in	Surface Mount	5000 K
ams-OSRAM USA INC. GW JDSTS2.EM-H2H4-XX38-K2L1-65-R33-XX	0.118 in	5.3 mm	0.209 "	3 mm		White		33 lm	35 lm	30 lm	180 mA		65 mA	120 °	80	4-SMD Flat Leads	0.6 mm	0.024 in	Surface Mount			4-SMD
ams-OSRAM USA INC. GW JDSTS2.EM-H4H7-XX35-K2L1-65-R33-STE	0.118 in	5.3 mm	0.209 "	3 mm		White		36 lm	39 lm	33 lm	180 mA		65 mA	120 °	80	4-SMD Flat Leads	0.6 mm	0.024 in	Surface Mount			4-SMD
ams-OSRAM USA INC. GW JDSTS2.EM-H5H7-XX32-K2L2-65-R33-XX	0.118 in	5.3 mm	0.209 "	3 mm		White		37 lm	39 lm	35 lm	180 mA		65 mA	120 °	80	4-SMD Flat Leads	0.6 mm	0.024 in	Surface Mount			4-SMD
ams-OSRAM USA INC. GW JDSTS2.EM-H4H6-XX55-1-65-C-R33-SA	0.118 in	5.3 mm	0.209 "	3 mm	193 lm/W	Neutral White	41.78 °C/W	36 lm	38 lm	33 lm	180 mA	2.87 V	65 mA	120 °	80	4-SMD Flat Leads	0.6 mm	0.024 in	Surface Mount	4000 K		4-SMD
ams-OSRAM USA INC. GW JDSTS2.EM-H1H4-A838-1-65-C-R33	0.118 in	5.3 mm	0.209 "	3 mm		Warm White	41.78 °C/W	32 lm			180 mA	2.87 V	65 mA	120 °	80	4-SMD Flat Leads	0.6 mm	0.024 in	Surface Mount	2700 K		4-SMD
ams-OSRAM USA INC. GW JDSTS2.EM-HPHR-A535-1-65-R18	0.118 in	5.3 mm	0.209 "	3 mm	173 lm/W	Neutral White	18 °C/W	32 lm	36 lm	28 lm	180 mA	2.85 V	65 mA	120 °	80	4-SMD Flat Leads	0.87 mm	0.034 in	Surface Mount	4000 K
ams-OSRAM USA INC. GW JDSTS2.EM-H3H6-XX55-1-65-C-R18	0.118 in	5.3 mm	0.209 "	3 mm	188 lm/W	Neutral White	41.78 °C/W	35 lm			180 mA	2.87 V	65 mA	120 °	80	4-SMD Flat Leads	0.6 mm	0.024 in	Surface Mount	4000 K		4-SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

GW JDSTS2.EM Series

LED Lighting DURIS® E 5 White, Cool 5700K 2.87V 65mA 120° 4-SMD, Flat Leads
